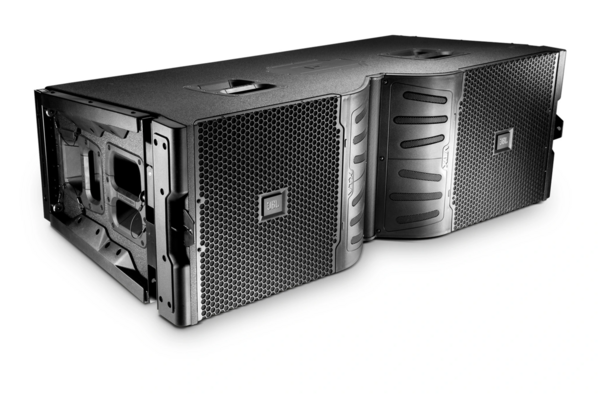

The VTX V25-II is a full-size, three-way line array element designed for high directivity sound projection. It features a fourth-generation waveguide engineered to enhance long-distance sound throw, wavefront control, and power matching with the Crown IT4x3500HD amplifier. The transducer configuration includes two 15-inch Differential Drive woofers rated at 2000W each, mounted in die-cast aluminum baffles, four 8-inch Differential Drive midrange drivers utilizing a patented Radiation Boundary Integrator (RBI) for improved dispersion control, and three D2 dual-diaphragm, dual-voice-coil compression drivers loaded onto the waveguide.

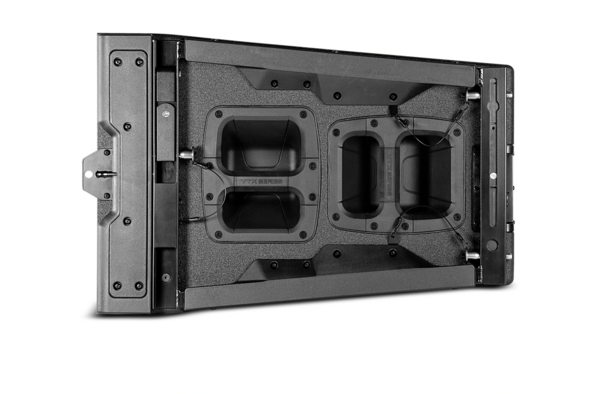

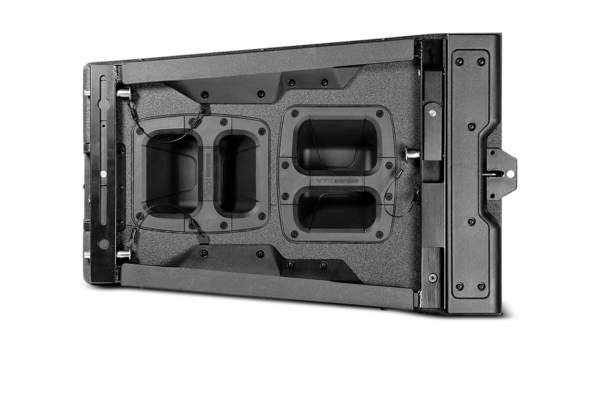

The enclosure incorporates patented rigging hardware for suspension at fixed angles in an array configuration. The system is compatible with Crown I-Tech HD amplification modules featuring BSS Omnidrive HD V5 processing and integrates with JBL HiQnet Performance Manager software for system configuration and control.
- 4th Generation HF Waveguide technology
- D2 Dual Diaphragm Dual Voice Coil Compression Driver
- JBL RBI (Radiation Boundary Integrator)
- Cardioid-Arrayable Subwoofer Enclosure
- Aluminum front baffles for reduced height, weight, and improved heat transfer
- JBL S.A.F.E. Suspension System
- V5 Processing with Crown I-Tech HD or VRACK
- JBL HiQnet Performance Manager System Configuration and Control
- Fixed angle tension suspension or compression suspension hardware
| System Type | Full Size 3-Way High Directivity Line Array Element with D2 Dual Drivers |
|---|---|
| Frequency Range (-10 dB) | 35 Hz - 18 kHz |
| Horizontal Coverage (-6 dB) | 90 degrees nominal (200 Hz - 16 kHz) |
| Maximum Peak Output | LF 141 dB, MF 140.5 dB, HF 149.5 dB |
| System Amplification | Crown Audio I-Tech HD |
| Nominal Impedance | LF 2x 8 ohms, MF 8 ohms, HF 8 ohms |
| LF Driver | (2) JBL 2267H 15-inch woofer |
| MF Driver | (4) JBL 2168H 8-inch mid-frequency driver |
| HF Driver | (3) JBL 2430K D2 Dual Diaphragm Dual Voice Coil Compression Driver |
