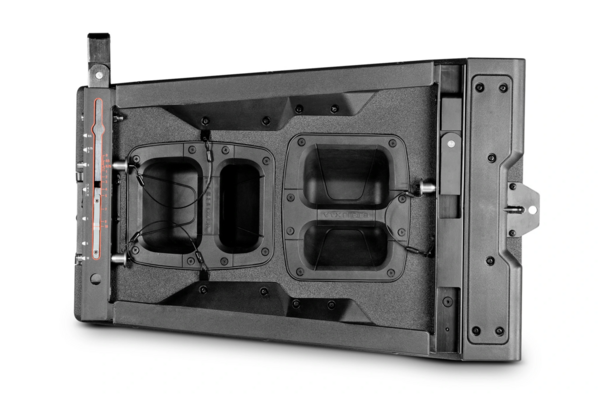

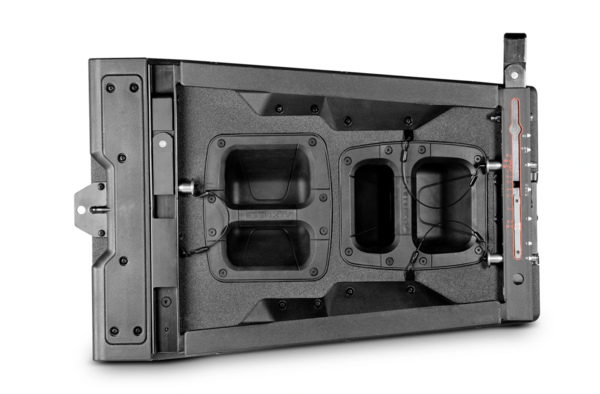

VTX-V25-II-CS | VTX V SERIES V25-II-CS FULLSIZE 3-WAY LINE ARRAY ELEMENT (COMPRESSION SUSPENSION) FEATURING PATENTED

This product is a full-size, three-way line array loudspeaker designed for high directivity sound projection. It incorporates a compression ASM suspension system for driver mounting and alignment.

• 4th Generation HF Waveguide technology
• D2 Dual Diaphragm, Dual Voice Coil Compression Driver
• JBL RBI (Radiation Boundary Integrator)
• Cardioid-Arrayable Subwoofer Enclosure Models
• Aluminum front baffles for reduced cabinet height, weight, and improved heat transfer
• V25 compression suspension system
• Accessories optimized for vertical transportation and deployment
• V5 Processing with Crown I-Tech HD or VRACK
• JBL HiQnet Performance Manager System Configuration and Control
• Fixed angle tension suspension (V25-II) or compression suspension (V25-II-CS) hardware

System Type	Full Size 3-Way High Directivity Line Array Element with D2 Dual Drivers
Frequency Range (-10dB)	35 Hz - 18 kHz
Horizontal Coverage (-6 dB)	90 degrees nominal
Maximum Peak Output	LF 141 dB, MF 140.5 dB, HF 149.5 dB
System Amplification	Crown Audio I-Tech HD
Nominal Impedance	LF 2x 8 ohms, MF 8 ohms, HF 8 ohms
LF Driver	(2) JBL 2267H 15-inch woofers
MF Driver	(4) JBL 2168H 8-inch mid-frequency drivers
HF Driver	(3) JBL 2430K D2 Dual Diaphragm Dual Voice Coil Compression Drivers
Enclosure	Cast aluminum front baffle, Finnish birch plywood, black DuraFlex finish with four integral recessed handles
