VW4600 | VIDEO WALL MOUNT

  • MAP: $467.99 / EA
  • List Price: $585.59 / EA
  • Log in to see if custom discounts apply
  • Case Quantity: 1
  • Sign In or Submit RFQ for accurate lead times
VIDEO WALL MOUNT
VIDEO WALL MOUNT
VIDEO WALL MOUNT
Click image to enlarge
VIDEO WALL MOUNT
VIDEO WALL MOUNT
VIDEO WALL MOUNT

VW4600
VIDEO WALL MOUNT

  • UM : EA
  • Estimated Weight: 17.5

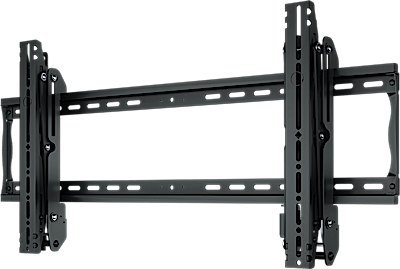

Video wall mount.

Features:

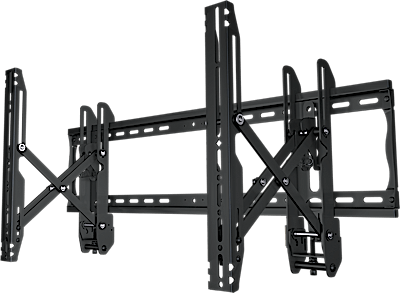

  • Full featured video wall solution and pull out mount
  • 10.69″ pull out extension from wall for easy wiring
  • Quick release latch and click-to-closed position feature
  • Lateral shift
  • Vertical adjustment and leveling
  • Plumb adjustment
  • Integrated dual keyed lock system
TV size range 37" – 75"
Weight capacity 200lb (91kg)
Max mounting pattern 800x400mm
VESA mounting patterns 75x75mm, 100x100mm, 200x100mm, 200x200mm, 300x200mm, 300x300mm, 400x200mm, 400x300mm, 400x400mm, 600x200mm, 600x400mm, 800x200mm, 800x400mm
Depth from wall 3.07" (78mm) VW4600, 3.34" (86mm) VW4600G2
Max extension 10.69"
Lateral adjustment varies with screen
Mounting surface wood stud, concrete, cinder block or metal stud (accessory required HT4)
Construction high-grade cold rolled steel
Product finish scratch resistant epoxy powder coat
Color black
Warranty 10-years
