VWP4600 | VIDEO WALL MOUNT IN PORTRAIT ORIENTATION
VWP4600
VIDEO WALL MOUNT IN PORTRAIT ORIENTATION
VWP4600
VIDEO WALL MOUNT IN PORTRAIT ORIENTATION
- UM : EA
- Estimated Weight: 17.0

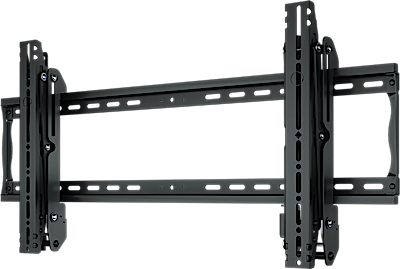

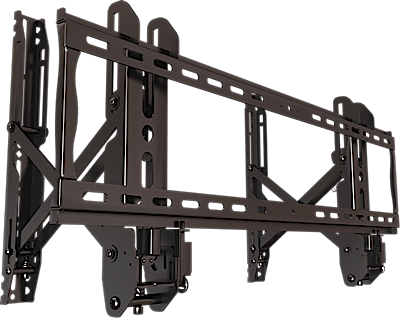

Crimson’s best value in class Video Wall Mount System features lateral, vertical, horizontal, and plumb adjustments that enable quick installation, easy operation and simple maintenance. Crimson''s proprietary Push in – Pop out Technology on the VW4600G2 allows a single display to be accessed without any disruption to the rest of the matrix, and the entire grid can be laid out by a single installer. Includes an integrated lock and key system with a quick-release mechanism enabling 10.69″ pull out extension for wiring and monitor servicing, and a lightweight wall plate design.
Features:
- Full featured video wall solution and pull out mount
- 10.69″ pull out extension from wall for easy wiring
- Quick release latch and click-to-closed position feature
- Lateral shift
- Vertical adjustment and leveling
- Plumb adjustment
- Integrated dual keyed lock system
| TV size range | 37" – 75" |
|---|---|
| Weight capacity | 200lb (91kg) |
| Max mounting pattern | 800x400mm |
| VESA mounting patterns | 75x75mm, 100x100mm, 200x100mm, 200x200mm, 300x200mm, 300x300mm, 400x200mm, 400x300mm, 400x400mm, 600x200mm, 600x400mm, 800x200mm, 800x400mm |
| Depth from wall | 3.07" (78mm) VW4600, 3.34" (86mm) VW4600G2 |
| Max extension | 10.69" |
| Lateral adjustment | varies with screen |
| Mounting surface | wood stud, concrete, cinder block or metal stud (accessory required HT4) |
| Construction | high-grade cold rolled steel |
| Product finish | scratch resistant epoxy powder coat |
| Product weight | 16lb (7.3kg) |
| Package specifications | 36"x12"x5" |
| Color | black |
| Warranty | 10-years |
