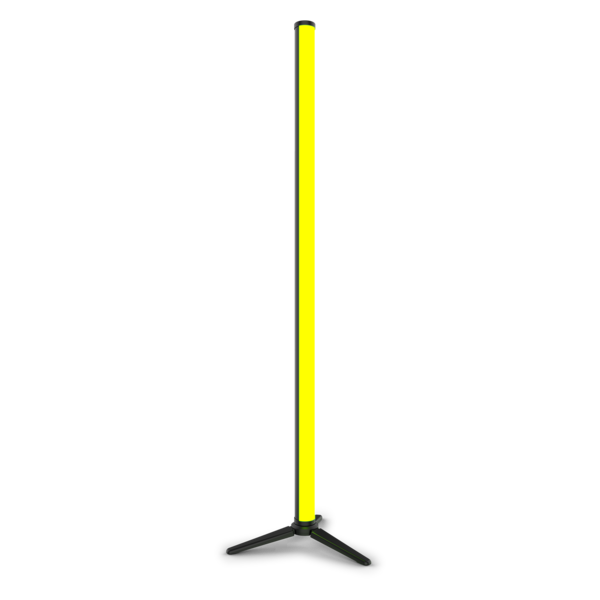

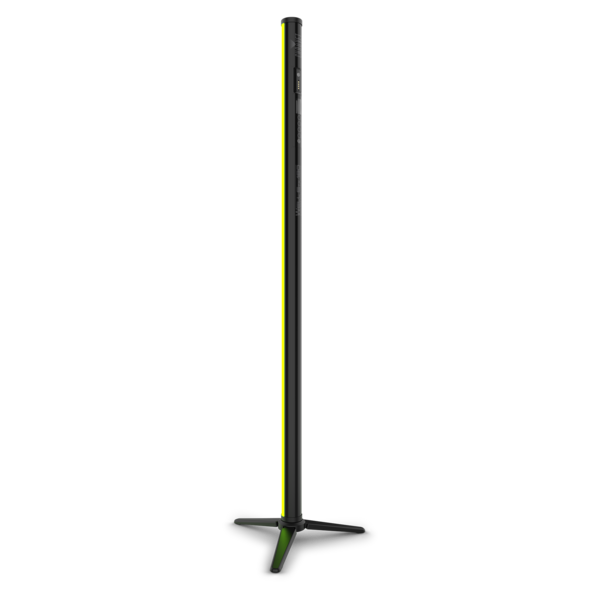

WELLSTX180X6 | DYNAMIC FREESTANDING, BATTERY-OPERATED, OUTDOOR-READY LED TUBE, 180 DEGREES ULTRA-BRIGHT LIGHT
WELLSTX180X6
DYNAMIC FREESTANDING, BATTERY-OPERATED, OUTDOOR-READY LED TUBE, 180 DEGREES ULTRA-BRIGHT LIGHT
WELLSTX180X6
DYNAMIC FREESTANDING, BATTERY-OPERATED, OUTDOOR-READY LED TUBE, 180 DEGREES ULTRA-BRIGHT LIGHT
- UM : EA
- Estimated Weight: 58.0
WELL STX 180 is a dynamic freestanding, battery-operated, and outdoor-ready LED tube that emits 180° of ultra-bright, high-quality, pixel-mappable light with an optional stealth filter for a complete disappearing effect when off. Wireless control of 16 zones of the RGBWW LED’s produce exceptional eye-candy effects with high CRI – so it will look as great on camera as it does in person. In addition to being IP65 rated, WELL STX 180 can also be oriented in any position so you can fully utilize the wireless freedom this fixture is capable of. The unit is packaged as part of a complete kit that includes: 6 WELL STX 180, 12 Magnetic Brackets for attaching to steel surfaces, 6 eyebolts for suspended hanging options, 6 folding floor stands, 6 stealth black diffusers 1 IR Remote, and 1 ABS Plastic charging flight case.
Features:
- Battery-Powered IP65 LED Strips - This kit includes six 1-meter, pixel-mapping LED strips that are battery-operated and IP65-rated for use in any environment.
- 16-Zone Pixel Control - Each strip features 16 individual zones of control for creating dynamic pixel-mapping effects.
- High CRI LEDs - High Color Rendering Index LEDs ensure fantastic and accurate skin tone rendering.
- Multiple Operational Modes - Choose between simple and complex operational modes to suit your specific production needs.
- Onboard Editable Effects - Use and customize a variety of built-in pre-programmed effects directly from the menu or over DMX.
- Adjustable Runtime Settings - Optimize battery performance with selectable 3, 5, 8, and 12-hour runtime settings.
- Versatile Mounting Accessories - The included mounting stands, magnetic brackets, and eye bolts provide several flexible setup options.

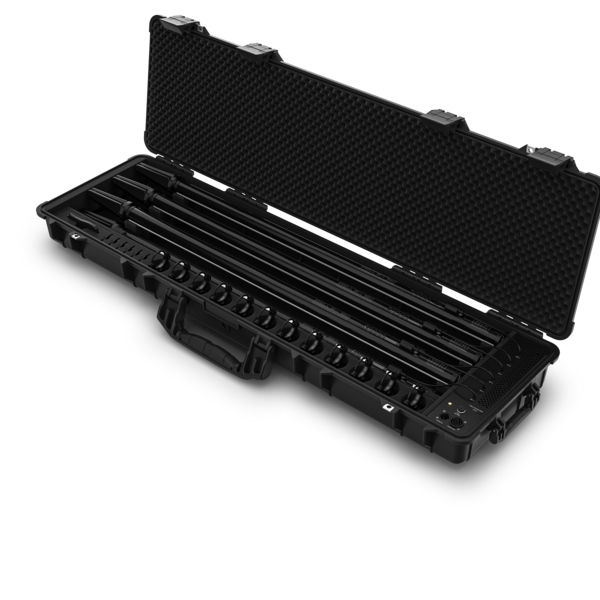

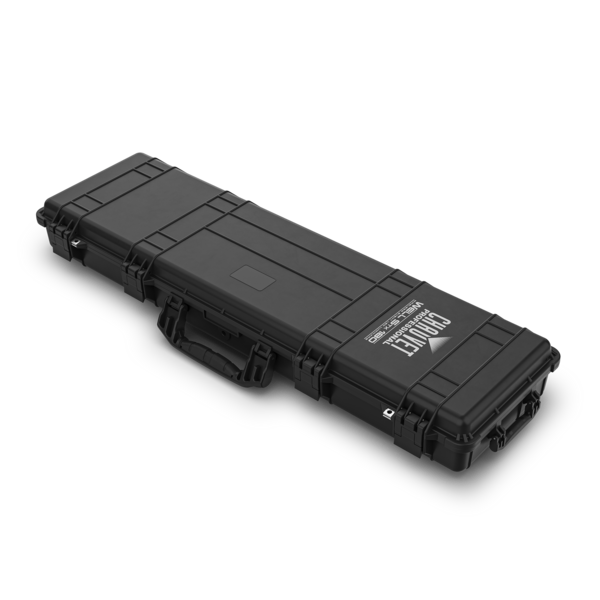

- Charging Flight Case - An included flight case provides protected transportation and convenient charging for all six fixtures.
- Unified Software Updates - Easily update the software for all six fixtures at once using the USB-C connection inside the flight case.
- Flexible Control Options - Operate fixtures in standalone mode or with wireless DMX control via the built-in W-DMX receiver.
- WELL-COM App Integration - The system works perfectly with the WELL-COM controller and app for advanced wireless control.
| Light Source | 128 LEDs (64RGB / 64WW) SMD 5050, 50,000 hours life expectancy |
|---|---|
| Color Temperature (range) | 2800 to 8000 K |
| Color Temperature (at full) | 9936 K |
| CRI | 94 @4000 K |
| Beam Horizontal Angle | 126° |
| Beam Vertical Angle | 125° |
| Field Horizontal Angle | 214° |
| Field Vertical Angle | 210° |
| Illuminance (total) | 17 lux @ 5 m – 3 hr run time |
| Lumens – Output | 1387 – 3 hr run time |
| Control Protocol | W-DMX, IRC |
| DMX Channels | 4, 15, 64 or 67 |
| Modes/Personalities | 4 personalities |
| Input Voltage | 100 to 240 VAC, 50/60 Hz (auto-ranging) |
| Power Linking | 8 units @ 120 V 14 units @ 208 V 15 units @ 230 V |
| Certifications | CE, FCC, UKCA |
| IP Rating | IP65, for temporary outdoor use |
