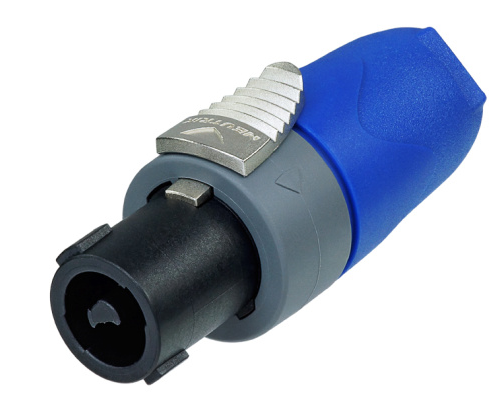

2 pole cable connector, chuck type strain relief
The industry-standard for loudspeaker connections offer extremely reliable and robust cable connectors with a reliable locking system. They feature solid contacts with screw-type terminals including a stranded wire protection which offer also solder termination.
Features
Current rating 40 A continuous, 50 A audio signal with 50% duty cycle
Only 3 parts, easy to assemble
High impact materials – long-lasting and reliable
Easy and extremely precise locking system "Quick Lock"
1 piece strain relief, chuck for 6 to 10 mm cable O.D.
Improved grip on latch
Mates with 4-pole chassis connector as well and makes contact with +1/-1
Certified according to IEC61984Suitable for IEC62368-1 compliant devices
|
Product |
|
|
Title |
NL2FX |
|
Connection Type |
speakON |
|
Gender |
female |
|
Electrical |
|
|
Contact resistance |
< 2 mO (after lifetime) |
|
Dielectric strength |
4 kVdc (peak) |
|
Insulation resistance |
> 1 GO (after dampheat) |
|
Rated current per contact |
40 A rms continuous |
|
Rated current per contact |
50 A audiosignal, duty cycle 50 % |
|
Rated voltage |
250 V ac |
|
Attention |
speakON is not to be used as an AC mains or power supply connector! |
|
Mechanical |
|
|
Cable O.D. |
6 - 10 mm |
|
Cable retention |
= 220 N (subject to cable O.D. and material) |
|
Lifetime |
> 5000 mating cycles |
|
Wiresize |
1.5 - 4 mm² |
|
Wiresize |
16 - 12 AWG |
|
Wiring |
screw type terminals or soldering |
|
Locking device |
Quick Lock (latch) |
|
Material |
|
|
Contact plating |
4 µm Ag |
|
Contacts |
Brass (CuZn39Pb3) |
|
Insert |
Polyamide (PA 66) |
|
Locking element |
Zinc diecast (ZnAl4Cu1) |
|
Shell |
PBTP 20 % GR |
|
Strain relief |
Polyacetal (POM) |
|
Environmental |
|
|
Flammability |
UL 94 V-0 |
|
Solderability |
Complies with IEC 68-2-20 |
|
Temperature range |
-30 °C to +80 °C |
