WIRELESS MICROPHONE,ELECTRET CONDENSER MICROPHONE CAPSULE,PLL-SYNTHESIZER SYSTEM
Click image to enlarge

WM-5225 H01
WIRELESS MICROPHONE,ELECTRET CONDENSER MICROPHONE CAPSULE,PLL-SYNTHESIZER SYSTEM

  • UM : EA

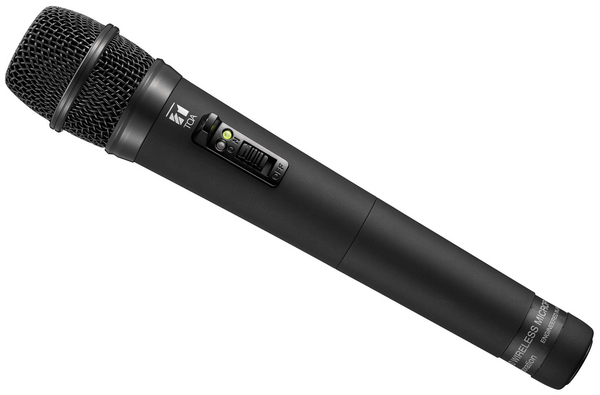

The WM-5225 Wireless Microphone employs an electret condenser microphone capsule and is suitable for any applications. Thanks to the PLL-synthesizer system, 64 different operating frequencies are made available. A high output power ensures stable radio signal transmission.

Features:

  • Condenser microphone with high quality electret condenser capsule, high sensitivity and excellent sound quality
  • Slim, extremely lightweight and can be held comfortably and securely
  • Comes with an indispensable on/off switch, which at the same time acts as a rolling stopper
  • With a maximum SPL of 126 dBSPL it is the right choice for even the most energetic speaker
Microphone Element Electret condenser microphone unit: Unidirectional
Modulation Frequency modulation
Frequency Range 576 - 606 MHz
Channel Selection 64 channels (the number of channels may differ from country to country)
RF Carrier Power Less than 50 mW (Factory preset 10 mW ERP)
Tone Frequency 32.768 kHz
Modulation Type PLL synthesized
Maximum Input Level 126 dB SPL
Maximum Deviation ±40 kHz
Audio Frequency Response 100 Hz - 15 kHz
Dynamic Range 95 dB or more (with WT-5800)
Battery WB-2000 rechargeable battery (option) or AA alkaline dry cell battery
Battery Life Approx. 13 h (when the WB-2000 rechargeable battery is used)
Approx. 10 h (when the alkaline battery is used)
Indicator Power/Battery lamps
Antenna Built-in type
Operating Temperature -10° C to +50° C (14° F to 122° F) (except battery)
Operating Humidity 30 % to 85 %RH (no condensation)
Finish Resin, coating
Dimensions Ø43.6 x 231.5 mm (Ø1.72" x 9.11")
Weight 180 g (0.4 lb) (with battery)
Included Accessories Microphone holder W3/8 (with stand adapter) x 1
Screw driver x 1, Storage case x 1
Optional Accessories Battery charger: BC-5000-2, BC-5000-6, BC-5000-12
Ni-MH battery: WB-2000-2 (containing 2 pieces)
