WM-5265-AM -M1 | UHF HANDHELD DYNAMIC MICROPHONE TRANSMITTER- 64 CHANNEL. FREQUENCY BAND M
WM-5265-AM -M1
UHF HANDHELD DYNAMIC MICROPHONE TRANSMITTER- 64 CHANNEL. FREQUENCY BAND M

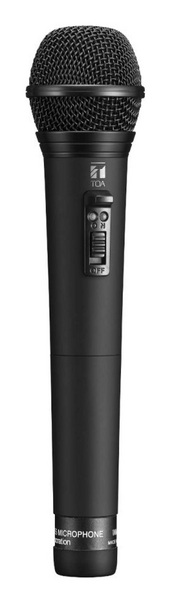

Click image to enlarge
WM-5265-AM -M1
UHF HANDHELD DYNAMIC MICROPHONE TRANSMITTER- 64 CHANNEL. FREQUENCY BAND M
- UM : EA
The WM-5265 Wireless Microphone employs an dynamic microphone capsule and is suitable for any applications. Thanks to the PLL-synthesizer system, 64 different operating frequencies are made available. A high output power ensures stable radio signal transmission. This microphone uses WB-2000 (Ni-MH rechargeable battery) or AA batteries.
| Power Source | Battery |
|---|---|
| Microphone Element | Dynamic microphone unit: Unidirectional |
| Modulation | Frequency modulation |
| Frequency Range | 506 - 538 MHz |
| Channel Selection | 64 channels (the number of channels may differ from country to country) |
| RF Carrier Power | 50 mW or less |
| Tone Frequency | 32.768 kHz |
| Maximum Input Level | 132 dB SPL |
| Maximum Deviation | ±40 kHz |
| Audio Frequency Response | 100 Hz - 15 kHz |
| Dynamic Range | 95 dB or more (with WT-5800) |
| Battery | WB-2000 (WB-2000-2 contains 2 pieces) rechargeable battery (option)or AA alkaline dry cell battery |
| Battery Life | Approx. 13 h (when the WB-2000 rechargeable battery is used) Approx. 10 h (when the alkaline battery is used) |
| Indicator | Power/Battery lamps |
| Antenna | Built-in type |
| Operating Temperature | -10 °C to +50 °C (14 °F to 122 °F) (except battery) |
| Operating Humidity | 30 % to 85 %RH (no condensation) |
| Finish | Resin, coating |
| Dimensions | Ø50 x 229 mm (Ø1.97" × 9.02") |
| Weight | 205 g (0.45 lb) (with battery) |
| Included Accessories | Microphone holder W3/8" (with stand adapter) …1,Screw driver …1, Storage case …1 |
×
