WM-5325-AM -M1 | WIRELESS BODYPACK TRANSMITTER 64 CH.- OPERATES ON M FREQ BAND (REQUIRES EITHER 1 AA ALKALINE

  • MAP: $272.00 / EA
  • List Price: $337.00 / EA
  • Log in to see if custom discounts apply
  • Case Quantity: 0
  • Sign In or Submit RFQ for accurate lead times
WIRELESS BODYPACK TRANSMITTER 64 CH.- OPERATES ON M FREQ BAND (REQUIRES EITHER 1 AA ALKALINE
Click image to enlarge

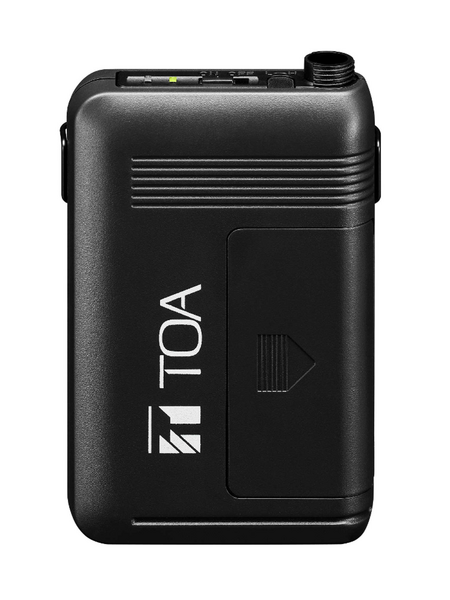

WM-5325-AM -M1
WIRELESS BODYPACK TRANSMITTER 64 CH.- OPERATES ON M FREQ BAND (REQUIRES EITHER 1 AA ALKALINE

  • UM : EA

The WM-5325 wireless transmitter has been manufactured for use with a UHF system. It is for use in speech reinforcement applications. Thanks to the PLL-synthesizer system, 64 different operating frequencies are made available. A high output power ensures stable radio signal transmission.

Power Source Battery
Modulation Frequency modulation
Frequency Range 506 - 538 MHz
Channel Selection 64 channels (the number of channels may differ from country to country)
RF Carrier Power 50 mW or less
Tone Frequency 32.768 kHz
Maximum Input Level -14 dB to -29 dB (*1) (Audio level control: Min. to Max.)
Audio Input Connector f3.5 mm (f0.14") mini plug
Maximum Deviation ±40 kHz
Audio Frequency Response 100 Hz - 15 kHz
Battery WB-2000 (WB-2000-2 contains 2 pieces) rechargeable battery (option)or AA alkaline dry cell battery
Battery Life Approx. 13 h (when the WB-2000 rechargeable battery is used)Approx. 10 h (when the alkaline battery is used)
Indicator Power/Battery lamps
Antenna Built-in type
Connector f3.5 mm (f0.14") mini plug
Operating Temperature -10 °C to +50 °C (14 °F to 122 °F) (except battery)
Operating Humidity 30 % to 85 %RH (no condensation)
Finish Resin, coating
Dimensions 62 (W) × 102.5 (H) × 23 (D) mm (2.44" × 4.04" × 0.91")
Weight 90 g (0.2 lb) (with battery)
Included Accessories Screw driver …1, Storage case …1, Neck strap …1
Optional Accessories Unidirectional lavalier microphone: YP-M5300
Omnidirectional lavalier microphone: YP-M5310
Headset microphone: WH-4000A, WH-4000H
