WMLU-G2 | UNISTRUT MENU BOARD MOUNTING SOLUTION

WMLU-G2
UNISTRUT MENU BOARD MOUNTING SOLUTION

MAP: $223.19 / EA
List Price: $278.39 / EA
Log in to see if custom discounts apply
Case Quantity: 1
Sign In or Submit RFQ for accurate lead times

Quantity: EA

Click image to enlarge

WMLU-G2
UNISTRUT MENU BOARD MOUNTING SOLUTION

UM : EA

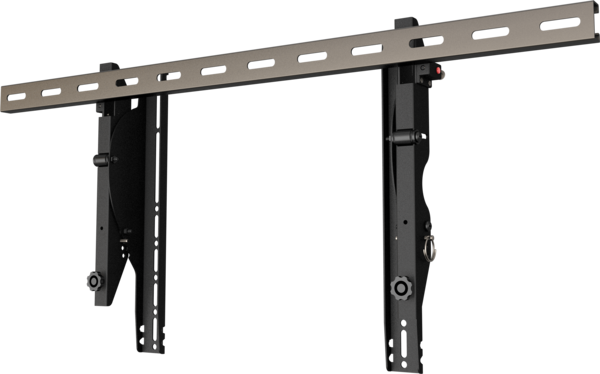

The WMLUG2 flat panel display brackets are designed specifically for wall-mounted unistrut applications. Perfect for QSRs, retail, and commercial environments, the WMLUG2 delivers a clean, professional look while simplifying the install process.

Features:

Now with Post-Installation Leveling
Attaches directly to 1 5/8″ unistrut channel
Up to 18° of tilt adjustment for a variety of viewing angles
Easy height adjustment with included tool
No tools required plumb adjustment
Locking pin secures mount to unistrut
Fast and easy installation

TV size range	30” – 65”+
Weight capacity	120lb (54kg) per screen
Max mounting pattern	402mm high
VESA mounting patterns	75x75mm, 100x100mm, 200x100mm, 200x200mm, 300x200mm, 300x300mm, 400x200mm, 400x300mm, 400x400mm, 600x200mm, 600x400mm, 800x400mm
Depth from wall	2.90” (74.5mm)
Tilt	+18° / -0°
Mounting surface	1-5/8 unistrut channel
Construction	high-grade cold rolled steel
Product finish	scratch resistant epoxy powder coat
Color	black
Warranty	10-years

WMLU-G2 PDF
View / Download
