WMP65 | WALL MOUNTED MENU BOARD FOR PORTRAIT ORIENTATION

  • MAP: $235.19 / EA
  • List Price: $292.79 / EA
  • Log in to see if custom discounts apply
  • Case Quantity: 1
  • Sign In or Submit RFQ for accurate lead times
WALL MOUNTED MENU BOARD FOR PORTRAIT ORIENTATION
WALL MOUNTED MENU BOARD FOR PORTRAIT ORIENTATION
WALL MOUNTED MENU BOARD FOR PORTRAIT ORIENTATION
Click image to enlarge
WALL MOUNTED MENU BOARD FOR PORTRAIT ORIENTATION
WALL MOUNTED MENU BOARD FOR PORTRAIT ORIENTATION
WALL MOUNTED MENU BOARD FOR PORTRAIT ORIENTATION

WMP65
WALL MOUNTED MENU BOARD FOR PORTRAIT ORIENTATION

  • UM : EA

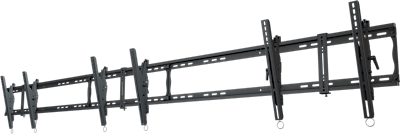

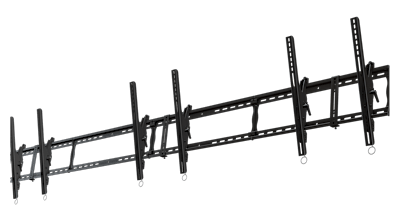

The Crimson Menu Board Mount System includes post installation leveling, cord management brackets and connectable wall plates.

Features:

  • Fully modular solution for multiple displays 40″-70″
  • Post-installation leveling
  • Includes one cord management plate for each display
  • Easily assembled by a single installer
  • Includes all necessary components and hardware
  • Per-display easy quote/easy order system
TV size range 40” – 70”
Weight capacity 200lb (91kg) per screen
Max mounting pattern 757mm high
VESA mounting patterns 75x75mm, 100x100mm, 200x100mm, 200x200mm, 300x200mm, 300x300mm, 400x200mm, 400x300mm, 400x400mm, 600x200mm, 600x400mm, 800x400mm
Depth from wall 2.2” (55.8mm)
Lateral adjustment varies with screen
Tilt +15°/-5°
Mounting surface wood stud, concrete, cinder block or metal stud (accessory required HT6)
Stud spacing dual stud 16”, 20”, 24” on center, triple stud on 16” center
Construction high-grade cold rolled steel
Product finish scratch resistant epoxy powder coat
Color black
Warranty 10-years
