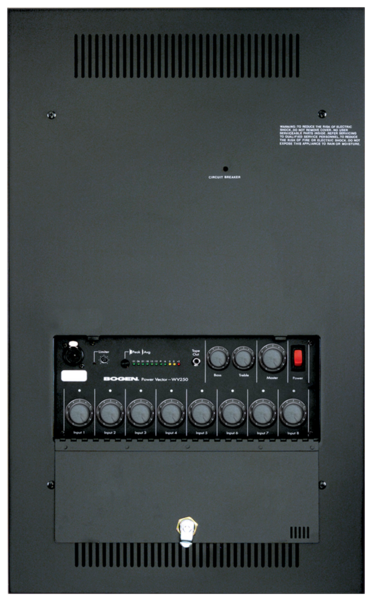

WV250
WALL MOUNTED 250 WATT AMPLIFIE

Bogen's WV250 Wall-Mount Mixer amplifier offers a powerful 250W of amplification. The amplifiers are designed to work with both high- (70/25V) and low- (4/8-ohm) impedance speaker systems. The WV250 accepts up to 8 plug-in modules with 4 levels of priority between modules. Two module bays also accept signal-processing output modules. Each input has its own independent volume control and a signal/clip indicator. An 11-segment LED meter indicates output level, while a motorized master volume control allows smooth and accurate operation of the unit's volume control from remote control panels (sold separately). Great for commercial sound applications including Bars, Restaurants, Clubs, Banquet Facilities and more.

FEATURES

• - 250-watt models, with a large power reserve

• - Capable of handling 70V, 25V, 8-ohm, and 4-ohm speaker loads

• - 8 module bays

• - Wide selection of advanced plug-in modules

• - 2 module bays capable of handling signal processing plug-in output modules

• - 4 levels of priority between modules

• - 11-segment LED output level meter monitors the output level of the power amplifier with Peak and Average meter switch

• - Adjustable output level limiter with limit indicator

• - Tape output available on front of unit

• - Optional front-mounted input combo jack with 1/4" stereo phone and female XLR capabilities

• - Motorized master volume control can be remotely operated

• - Bass and treble controls with center detent

• - Two-color LED for each channel indicates input active/clipping

• - Switch permits user to select either transformer coupled outputs or a direct low-impedance output

• - Bass and treble control bypass switch (located in module bay 6)

• - 125 Hz Lo-cut feature (switch located in module bay 6)

• - 5-position barrier strip, with clamping washers, provides connections for speaker loads

• - Master mute function overrides all audio from the mixer section of the amplifier

• - Screw terminal for master mute and remote volume control functions

• - Each of the 8 module bays has an associated independent volume control

• - Remote volume control panel (RVCP) (sold separately)

• - Requires flush-mount (Model BBF) or surface mount (Model BBS) back boxes (sold separately)

• - Requires front cover door (WMAD sold separately)

• - Listed to UL Standard 60065 for US and Canada
