XFMR4 | 4 CHANNEL TRANSFORMER PROVIDES 70V RMS & 100V RMS OUTPUT WHEN USED WITH THE COMTECH DRIVECORE AMPS

  • MAP: $640.00 / EA
  • List Price: $640.00 / EA
  • Log in to see if custom discounts apply
  • Case Quantity: 0
  • Sign In or Submit RFQ for accurate lead times
4 CHANNEL TRANSFORMER PROVIDES 70V RMS & 100V RMS OUTPUT WHEN USED WITH THE COMTECH DRIVECORE AMPS

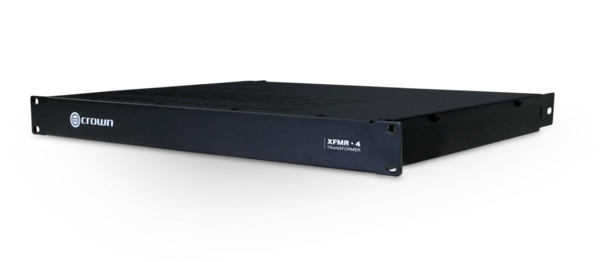

Click image to enlarge

XFMR4
4 CHANNEL TRANSFORMER PROVIDES 70V RMS & 100V RMS OUTPUT WHEN USED WITH THE COMTECH DRIVECORE AMPS

  • UM : EA
  • Estimated Weight: 17.0

The Crown XFMR-4 and XFMR-8 are rack-mountable transformers to provide impedance matching between amplifier outputs and “constant voltage” loudspeakers. This unit allows amplifiers without direct 70Vrms or 100Vrms output capability to drive distributed speaker systems designed to operate at those voltages.

Features:

  • Transformers provide four and eight channels of impedance matching for constant voltage operation
  • Provides 70Vrms and 100Vrms output when used only with the ComTech DriveCore Series of amplifiers
  • Allows amplifiers without direct constant voltage capability to be easily integrated into distributed systems
  • “Jumper” cables are provided to easily incorporate the XFMR unit with a ComTech DriveCore amplifier
Output connectorsPluggable barrier block connectors that accept up to 14 AWG wire
Frequency response+/-1.0dB (at 70Hz to 15 kHz)
Insertion loss≤1.0 dB max (at 70VAC)
Max input32Vrms/125W
Product Specifications
Brand Crown
