XLC2500 | 2CH CINEMA POWER AMPLIFIER 500W , W/O DSP

  • MAP: $1,109.00 / EA
  • List Price: $1,184.00 / EA
  • Log in to see if custom discounts apply
  • Case Quantity: 1
  • Sign In or Submit RFQ for accurate lead times
2CH CINEMA POWER AMPLIFIER 500W , W/O DSP
2CH CINEMA POWER AMPLIFIER 500W , W/O DSP
Click image to enlarge
2CH CINEMA POWER AMPLIFIER 500W , W/O DSP
2CH CINEMA POWER AMPLIFIER 500W , W/O DSP

XLC2500
2CH CINEMA POWER AMPLIFIER 500W , W/O DSP

  • UM : EA
  • Estimated Weight: 11.0

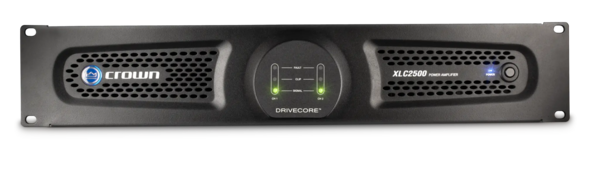

Crown XLC 2500

Two-channel, 500W @ 4Ω Power Amplifier

Features:

  • Two models of 500W (XLC2500) and 800W (XLC2800) per channel at 4-ohms
  • XLC Amplifiers are compatible with CXM2000 for monitor, fault detection and crossover functions
  • XLC Amplifiers are compatible with Crown Monitor System DSi-8M for monitor function
  • Power for 2-ohm, 4-ohm and 8-ohm outputs, supporting stereo and bridge outputs
  • Support parallel connection of cinema surround speaker
  • Indicators provide accurate diagnostics: Power, Signal, Clip and Fault
  • Volume control on rear panel of amplifiers
  • High performance, light weight
  • DriveCore  based amplifier – weighs less than 14lbs (6 kgs)

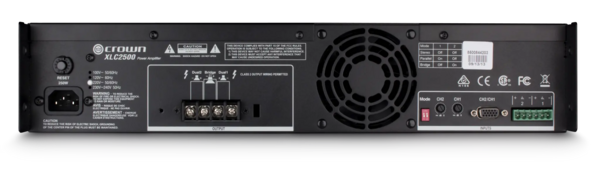

  • Minimal front panel control; block connectors and controls on back of amplifiers
  • High performance lightweight DriveCore based amplifier for audiophile quality and extremely high reliability
  • Configurable input operation for stereo and parallel and bridge modes
  • Configurable output operation for stereo and bridge modes
AC Line Voltage and Frequency Configurations Available (+/- 10%) 100VAC 50/60 Hz, 110VAC 60 Hz, 220 and 230~240VAC 50 Hz
Voltage Gain 35
Sensitivity 1.4V (for full rated power at 4 ohms)
Signal to Noise Ratio (ref. rated power, 8 ohms, 1 kHz) > 103 dB
THD <0.5%
Damping Factor (8 ohms, 10 Hz to 400 Hz) >200
Intermodulation Distortion (from full rated output to -30 dB) <0.3%
Frequency Response (at 1W, 20 Hz - 20 kHz) 0 dB
Crosstalk >85 dB (below rated 8 ohms power, at 1 kHz)
>55 dB (below rated 8 ohms power, at 20 kHz)
Input Impedance (nominal) 20 kilohms balanced, 10 kilohms unbalanced
Load Impedance 2~8 ohms per channel in Stereo
4~8 ohms in Bridge
Dimensions 19" x 3.5" x 8" (48.3cm x 8.9cm x 20.6cm)
Weight 8.3 lbs (3.75 kg)
Shipping Weight 10.7 lbs (4.85 kg)
IEC Power Connector 15A
