YW-4500 | ANTENNA FOR WALL-/CEILING MOUNTING,FOR UHF BAND WIRELESS SYSTEM,75 O IMPEDANCE

  • MAP: $229.00 / EA
  • List Price: $283.00 / EA
  • Log in to see if custom discounts apply
  • Case Quantity: 0
  • Sign In or Submit RFQ for accurate lead times
ANTENNA FOR WALL-/CEILING MOUNTING,FOR UHF BAND WIRELESS SYSTEM,75 O IMPEDANCE

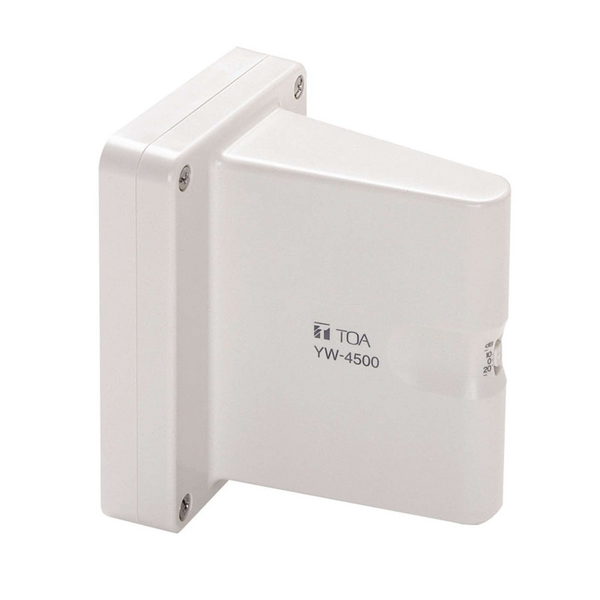

Click image to enlarge

YW-4500
ANTENNA FOR WALL-/CEILING MOUNTING,FOR UHF BAND WIRELESS SYSTEM,75 O IMPEDANCE

  • UM : EA

The wireless antenna YW-4500 has been designed for UHF band wireless system. Cable loss canbe compensated for by a built-in RF signal booster. The YW-4500 in a dipole antenna designedto be installed indoors. Use the coaxial cable with 75 O impedance.

Features:

  • Omnidirectional dipole antenna for wall or ceiling mounting
  • By means of the integrated RF amplifier losses induced by long cable runs can be compensated
Power Source 7 to 12 V DC (supplied from amplifier or tuner/receiver)
Power Consumption 15 mA or less
Receiving Frequency 550 - 932 MHz, UHF
Dipole Ratio Relative Gain 8 dB or more (780 MHz)
Antenna Gain More than 8 dB (0 dB position)
VSWR 3.0 or less
Output Impedance 75 O
Mounting Hole Pitch 83.5 mm (dimensions for wiring box)
Operating Temperature –10 to 50°C
Operating Humidity 30 % to 85 %RH (no condensation)
Dimensions 105 (W) x 140 (H) x 126 (D) mm
Weight 270 g
Included Accessories M3.5 screw for wiring box x 2, Tapping screw (M4) for wooden wall x 2, RG-6/U or RG-11/U sleeve x 1
