BS-A860 | 8 CHANNEL POWER AMP
BS-A860
8 CHANNEL POWER AMP
BS-A860
8 CHANNEL POWER AMP
- UM : EA

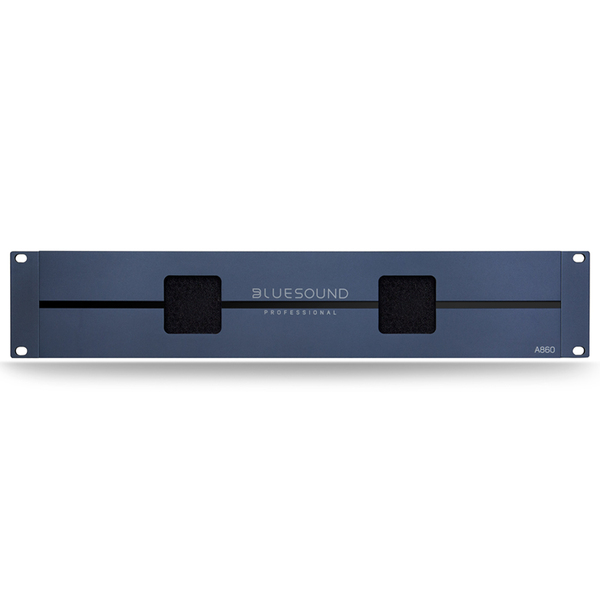

The Bluesound Professional A860 is a high quality 8-channel power amplifier for use in commercial installations. This 2U amplifier provides 50W x 8 at 8O, 60W x 8 at 4 O or 120W at 8 O per pair of channels in bridged mode. A standby mode can be triggered remotely or automatically for low power consumption when not in use. A global input can be assigned to multiple outputs and global and local output facilitate multiple amplifier installations. Thermostatically controlled fans ensure trouble-free operation in a wide range of conditions.
Features
8 channels of high-quality amplification
Balanced line inputs for commercial use
Automatic or remotely triggered standby mode for 0.5W low power consumption
Thermostatically controlled low noise fans ensure reliable operation
Global balanced input routable to multiple outputs
Pass-through global and local balanced line level outputs for multi-amplifier installations
Compact 2U rack-mount form factor
Indicators for amplifier and channel status
|
Signal/Noise Ratio, A-Weighted |
>80dB (ref. 1W/8ohm), >100dB (ref. 50W) |
|
Minimum Input Signal to Trigger (auto sense mode) |
>20mV |
|
Time to Automatic Standby (without signal at input sense mode) |
10 minutes |
|
Rated Power |
600W (120V 60Hz, 230V 50Hz) |
|
Idle Power |
<26W |
|
Standby Power |
<0.5W |
