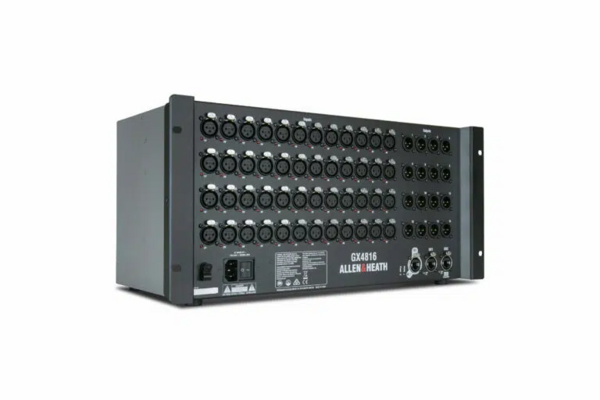

AH-GX-4816 | 48 XLR INPUT / 16 XLR OUTPUT 96KHZ PORTABLE GX EXPANDER W/ DX SOCKETS FOR SQ, AVANTIS, & DLIVE / 5RU

AH-GX-4816
48 XLR INPUT / 16 XLR OUTPUT 96KHZ PORTABLE GX EXPANDER W/ DX SOCKETS FOR SQ, AVANTIS, & DLIVE / 5RU

GX4816 is a 96kHz audio expander that provides high-input-count remote expansion for SQ, Avantis and dLive mixing systems, and for the AHM-64 audio matrix processor.

Each GX4816 is loaded with 48 dLive mic preamps with independent Phantom Power LED indicators, plus 16 XLR line outputs. Additionally, 2 DX ports are provided for connection to up to 4 DX Expanders for further I/O expansion. Connection to a ME Personal Mixing System is possible via the DX2 socket when used with SQ or Avantis.

GX4816 connects via a single Cat5e cable to an SLink socket on a SQ, Avantis or AHM-64, or to a gigaACE audio network card on a dLive system.

Connection to DX Expanders and the ME Personal Mixing System is also over Cat5e cable.

Features

• 48 Mic Preamps on XLR with Phantom Power status LEDs

• 16 XLR Line Outs

• 96kHz operation

• DX1 Port – compatible with a single DX32, or up to 2 DX168/DX164-W expanders

• DX2/ME Port – compatible with a single DX32, up to 2 DX168/DX164-W expanders, or a ME personal monitoring system (not compatible with AHM-64 or dLive).

• Compatible with SQ, Avantis, AHM-64 and dLive (dLive requires firmware V1.86 onwards)

• Multiple GX4816 can be added to a system:

  • Up to 2 GX4816 units can be added to a SQ system

  • Up to 3 GX4816 units can be added to an Avantis system

  • Up to 5 GX4816 units can be added to a dLive S Class system

  • Up to 3 GX4816 units can be added to a dLive C Class system

• Rack-mounted (5u) or shelf/floor operation

• Plug and Play – no IP addressing required

• Compatible with CAT5e (or higher) cables of up to 100m

• Locking EtherCon ports
