BS-B170S | 1 ZONE NETWORK STEREO AMP WITH 70/100V OUTPUT
BS-B170S
1 ZONE NETWORK STEREO AMP WITH 70/100V OUTPUT
BS-B170S
1 ZONE NETWORK STEREO AMP WITH 70/100V OUTPUT
- UM : EA
The Bluesound Professional B170S networked streaming stereo amplifier is a complete solution for a commercial music installation. The B170S combines a high-quality stereo low impedance and constantvage amplifier with a BluOS enabled network music player. The B170S’s amplifier section provides 2 x 80W of power into 4/8 O or 2 x 100W at 70V or 1 x 100W at 100V. This provides plenty of power for most small/medium spaces and thermostatic fan cooling provides for reliable operation in commercial environments. The amplifier technology is highly energy efficient and also has a standby mode consuming only 6W of power. The addition of constantvage outputs allows for long chains of small speakers to be powered with variable power tapping at each speaker giving control of local volume.
The form factor of the B170S allows it to be mounted individually vertically or horizontally on or under shelves or tables or on walls. Up to six B170S units can be mounted side-by-side in a 3U space in a rack using the optional RM160 rack mounting shelf for a compact 12-channel system with six independent or grouped zones.
Features
A complete stereo solution for commercial installations
Integration with local network content storage
PC/Mac, iOS/Android and third-party control
Security preventing unauthorized control
Flexible and unlimited grouping of zones within a BluOS system
Streaming via ethernet for increased reliability
USB input for replay from local connected drives
Energy-efficient amplification providing both low impedance and constantvage outputs
2 x 80W into 4/8ohm
2 x 100W @ 70v
1 x 100W @ 100v
6W standby mode
Flexible mounting options including mounting of 6 x BS170S in a 3U rack space using the optional RM160 rack mounting shelf
|
Supported File Formats |
MP3, AAC, WMA, OGG Vorbis, WMA-L, FLAC, ALAC, WAV, AIFF, MQA, HRA |
|
Supported Cloud Services |
SoundMachine, Tunify, Custom Channels, SiriusXM for Business, Spotify, Tidal, Amazon, Deezer, Qobuz, TuneIn, Tuner.com, Qsic, and many others |
|
Supported Operating Systems |
Microsoft Windows 7 SP1 or higher, Apple Macintosh OSX 10.7.5 or higher |
|
Free Internet Tuner |
TuneIn Tuner, iHeartTuner, Calm Tuner, Tuner Paradise, Slacker Tuner |
|
Integration Partners |
Control4, RTI, Crestron, URC, ELAN, Lutron |
|
Rated Power |
2 x 80W into 4/8ohm, 2 x 100W @ 70v, 1 x 100W @ 100v |
|
Rated Distortion |
=0.005% |
|
Signal-to-Noise Ratio |
-110dBA |
|
Sample Rate |
32 – 192kHz |
|
Bit Depth |
16 – 24 |
|

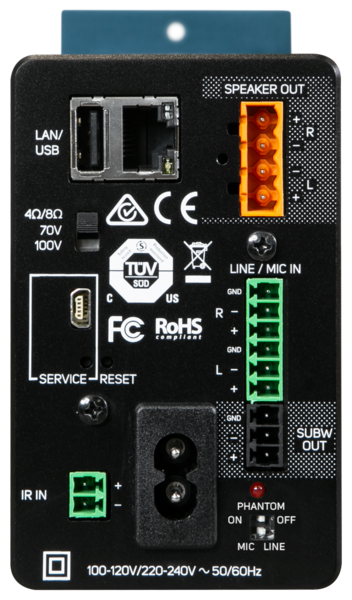

INPUT |
|
|
Analogue |
Phoenix |
|
USB |
Type A (for USB memory stick and supported peripherals – FAT32 formatted), Type B Mini USB (for servicing purposes only) |
|
IR Input |
Phoenix |
|
OUTPUT |
|
|
Subwoofer OUT |
Phoenix |
|
Speaker OUT |
Phoenix Speaker connection block |
|
NETWORK
|
|
|
Gigabit Ethernet RJ45 |
|
|
User Interface |
FREE Android and iOS App available at GooglePlay and Apple App Store |
|
GENERAL SPECIFICATIONS |
|
|
AC Power Supply |
AC Power Supply |
|
Standby Power |
6W (Network Standby Mode) |
|
Dimensions (W x H x D) |
70 x 120 x 350mm (2.81 x 4.75 x 13.81”) |
|
Net Weight |
1.6kg (3.5lb) |
|
Shipping Weight |
2.3kg (5.1lb) |
|
RM 160 RACK MOUNT ACCESSORY |
|
|
Dimensions (W x H x D) |
480 x 135 x 460mm (18.9 x 2.3 x 18.1”) |
|
Weight |
4.28kg (9.45lb) |
