CCA10I-BA-B | CONSTANT CURVATURE ARRAY POINT SOURCE SPEAKER W/160° SYMMETRICAL HORIZONTAL PATTERN CONTROL, BLACK
CCA10I-BA-B
CONSTANT CURVATURE ARRAY POINT SOURCE SPEAKER W/160° SYMMETRICAL HORIZONTAL PATTERN CONTROL, BLACK
CCA10I-BA-B
CONSTANT CURVATURE ARRAY POINT SOURCE SPEAKER W/160° SYMMETRICAL HORIZONTAL PATTERN CONTROL, BLACK
- UM : EA
- Estimated Weight: 90.0

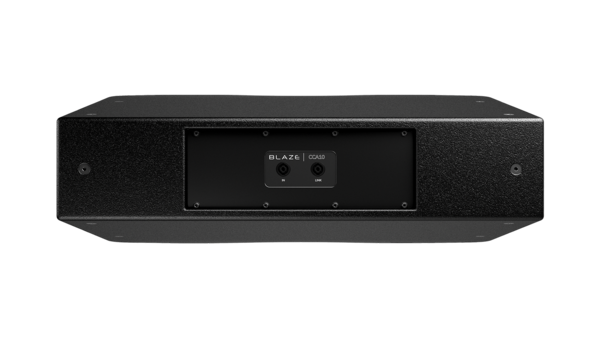

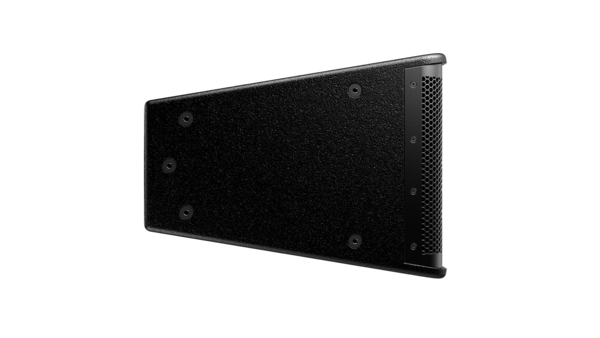

The CCA10i-BA is a compact arrayable point source loudspeaker, designed for medium-sized venues to large distributed systems that need a flexible, scalable speaker solution.
Mounted horizontally with tight acoustic centers to minimize comb filtering, each CCA10i-BA enclosure provides a fixed 20° vertical coverage and can be flown with additional enclosures in vertical arrays.
Featuring a coaxial compression driver that uses separate midrange and high-frequency polymer ring- shaped diaphragms, the compression driver delivers an extremely wide response from 420 Hz – 18,000 Hz.
Two 10” high-excursion ultra-low distortion drivers offer reduced power compression, providing efficient and accurate bass reproduction down to 52 Hz.
Features
3-way Arrayable Point Source, designed for Bi-Amping
Constant Curvature waveguide for unprecedented array coherence
Precision 160 Degree Symmetrical Horizontal pattern control
Variable vertical coverage in 20° increments (one enclosure 20° and max 12 enclosures)
Dual 10” ultra low distortion, high excursion drivers
System range 52 Hz – 18 kHz
Exceptionally high SPL
Rugged Polyurea coating for extreme durability
System integration with BLAZE amplifiers
|
Frequency Response (-3dB) |
52 Hz - 18 kHz |
|
Frequency Range (-10 dB) |
45 Hz - 18 kHz |
|
Recommended High-Pass Filter |
48 Hz - w/ minimum 24 dB / Butterworth Filter |
|
Horizontal Nominal Dispersion (-6 dB) |
160° |
|
Vertical Nominal Dispersion (-6 dB) |
20° |
|
Recommended Crossover Frequency |
420 Hz (acoustic, powered, external DSP) |
|
Long Term Power Handling (Low Freq.) |
600 W (2400 W peak) |
|
Long Term Power Handling (High Freq.) |
110 W (440 W peak) |
|
Low Frequency Impedance |
4ohm |
|
High Frequency Impedance |
8ohm |
|
Pressure Sensitivity (Low Freq @ 1W/ 1m) |
101 dB |
|
Pressure Sensitivity (High Freq. @ 1W/1m) |
111.4 dB |
|
Max System SPL (@ 1W/1m) |
131 dB SPL (140 dB SPL peak) |
