COREPARUV120ILS | COMPACT ULTRA-WIDE 120W UV WASH, CHIP-ON-BOARD TECHNOLOGY, ILS COMPATIBILITY
COREPARUV120ILS
COMPACT ULTRA-WIDE 120W UV WASH, CHIP-ON-BOARD TECHNOLOGY, ILS COMPATIBILITY
COREPARUV120ILS
COMPACT ULTRA-WIDE 120W UV WASH, CHIP-ON-BOARD TECHNOLOGY, ILS COMPATIBILITY
- UM : EA
- Estimated Weight: 12.1

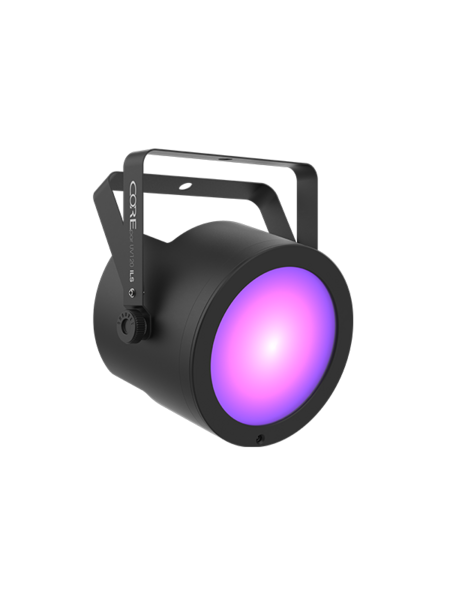

COREpar UV 120 ILS is a compact ultra-wide 120-watt UV wash with COB (Chip-on-Board) technology. Also on board is ILS compatibility for use in the Integrated Lighting System (ILS) ecosystem that makes creating coordinated light shows across different fixture types easy. COREpar UV 120 ILS also has D-Fi USB compatibility for wireless Master/Slave or DMX control and high-frequency LED dimming lets you achieve flicker-free video operation. The included magnetic Fresnel lens allows the flexibility to go from an ultra-wide to narrow beam in seconds. Its sit-flat housing design hugs the floor and features power and DMX outlets on the side of the unit for easy connections. COREpar UV 120 ILS has a robust housing to withstand the harshness of traveling from gig to gig.
Features
Compact ultra-wide UV wash with COB (Chip-on-Board) technology
ILS compatibility for use in the ILS ecosystem
D-Fi USB compatibility for wireless Master/Slave or DMX control
Included magnetic Fresnel lens allows the flexibility to go from an ultra-wide to narrow beam in seconds
Withstand the harshness of traveling from gig to gig with a robust housing

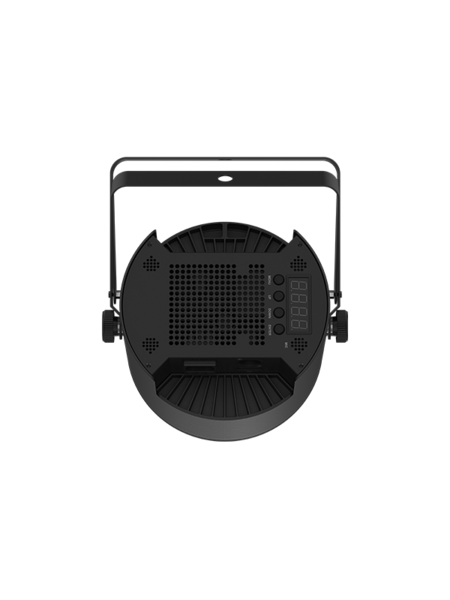

Sit-flat housing design hugs the floor and features power and DMX outlets on the side of the unit
Achieve flicker-free video operation with high-frequency LED dimming
Save time running cables and extension cords by power linking multiple units
Point-and-shoot operation of sound-activated and automated programs with the optional IRC-6 remote
Fits best in the CHS-40 VIP Gear Bag
|
DMX Channels |
1 or 5 |
|
DMX Connectors |
3-pin XLR |
|
Light Source |
1 COB LED (UV) 120 W, (3.34A), 50,000 hours life expectancy |
|
Strobe Rate |
0 to 20 Hz |
|
Beam Angle |
(with lens) 21°, (without lens) 44° |
|
Field Angle |
(with lens) 34°, (without lens) 94° |
|
Power Linking |
5 units @ 120 V; 9 units @ 230 V |
|
Input voltage |
100 to 240 VAC, 50/60 Hz (auto-ranging) |
|
Power and Current |
119 W, 1.5 A @ 120 V, 60 Hz, 118 W, 0.9 A @ 230 V, 50 Hz |
|
Weight |
4.6 lb (2.1 kg) |
|
Size |
8.9 x 7.4 x 9 in (225 x 185 x 228 mm) |
|
Approvals |
CE, RoHS, UKCA |
|
Optional Controllers |
IRC-6, D-Fi USB |
