CSD2X2 | DROP IN CEILING SPEAKER 2 X 2 PANEL, OFF WHITE COLOR
CSD2X2
DROP IN CEILING SPEAKER 2 X 2 PANEL, OFF WHITE COLOR
CSD2X2
DROP IN CEILING SPEAKER 2 X 2 PANEL, OFF WHITE COLOR
- UM : EA
- Estimated Weight: 15.8

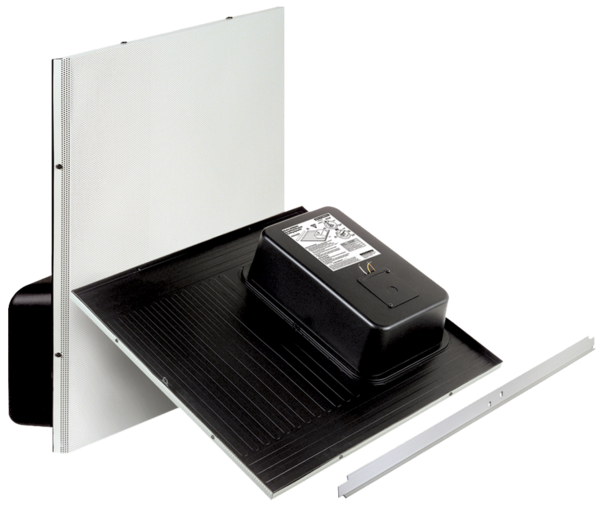

Bogen's CSD2x2 and CSD2X2VR Drop-In Ceiling Speakers are full-range speakers that allow fast and simple installation, which saves time, effort, and cost. The CSD2X2/VR is the perfect ceiling speaker whether your ceiling grid is 2' x 2' or 2' x 4'. Just make one simple cut to the ceiling tile, lay the support rail crossbar (included) across the ceiling grid, and drop the speaker into place.
Features
2ft. X 2ft. with back can enclosure
4-watt, 70V/25V transformer
4, 2, 1, 1/2, & 1/4-watt tap settings; selectable by rotary switch
Fully enclosed, industrial grade steel construction
8" main cone with secondary high-frequency cone; 10 oz. magnet weight
Plenum-rated — meets the requirements of UL standard 2043 for smoke and heat release
Front-mounted, recessed volume control versions available (VR)
Available in Off-White and Bright White (U)
Listed to UL Standard 60065 for U.S. & Canada; and UL Standard 1480 for U.S.
|
Frequency Response |
95 Hz to 20 kHz |
|
SPL @ 1W / 1m |
94 dB |
|
Power Taps |
4, 2, 1, 0.5, 0.25 watts |
|
Dispersion @ 2 kHz (6 dB down) |
100° |
|
Cone Material & Surround |
Treated paper |
|
Cones |
8" main cone with secondary high frequency cone |
|
Magnet Weight |
10 oz. |
|
Connection |
Via wire nuts (included in electrical box) |
|
Dimensions |
24" W x 4-7/8" H x 24" D |
|
Product Weight |
12 lb. |
