GOBOZOOM2 | GOBO ZOOM 2
GOBOZOOM2
GOBO ZOOM 2
Click image to enlarge
GOBOZOOM2
GOBO ZOOM 2
- UM : EA
- Estimated Weight: 30.9

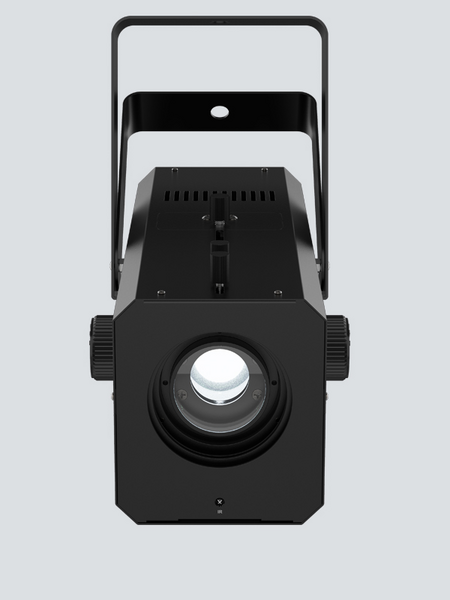

Thrill event guests with customized logos, icons and other designs with Gobo Zoom 2, a high-powered custom gobo projector with a punchy 70 W LED. Proper positioning of gobos is easy with an innovative manual rotation knob that allows fast indexing without gobo removal. Gobo Zoom 2 comes with 10 popular holiday gobos and manual zoom for short-throw or long-throw applications, making it versatile and convenient. The convenience doesn’t stop there. Most functions are accessible with an optional IRC-6 remote and set-up time can be reduced by power linking multiple units.
Features:
- High-powered custom gobo projector with a punchy 70 W LED
- Innovative manual rotation knob allows fast indexing without gobo removal
- Manual zoom for short-throw or long-throw applications
- Includes 10 popular holiday gobos
- Access most functions via the optional IRC-6 remote
- Reduce set-up time by power linking multiple units
- Fits best in the CHS-40 VIP gear bag
- Includes 10 popular holiday gobos
| DMX Channels | 1 |
|---|---|
| DMX Connectors | 3-pin XLR |
| Light Source | 1 LED (cool white) 70 W, (3A), 50,000 hours life expectancy |
| PWM Frequency | 4000 Hz |
| Illuminance | (21°): 8,030 lux @ 2 m (38°): 2,660 lux @ 2 m |
| Lumens | 2,894 |
| Power Linking | 7 units @ 120 V; 14 units @ 230 V |
| Input Voltage | 100 to 240 VAC, 50/60 Hz (auto-ranging) |
| Power and Current | 74 W, 1 A @ 120 V, 60 Hz 72 W, 0.6 A @ 230 V, 50 Hz |
| Weight | 5.8 lb (2.6 kg) |
| Size | 13 x 6 x 5.7 in (330 x 150 x 145 mm) |
| Approvals | CE |
| Gobo Size (E) | 37.3 mm outside, 22 mm image, 1 mm max thickness |
| Zoom Angle (manual) | 21° to 38° |
| Bracket Mounting Hole | 13 mm |
| Optional Controllers | IRC |
