HFCS1B | HI-FI CEILING SPEAKER BLACK

HFCS1B
HI-FI CEILING SPEAKER BLACK

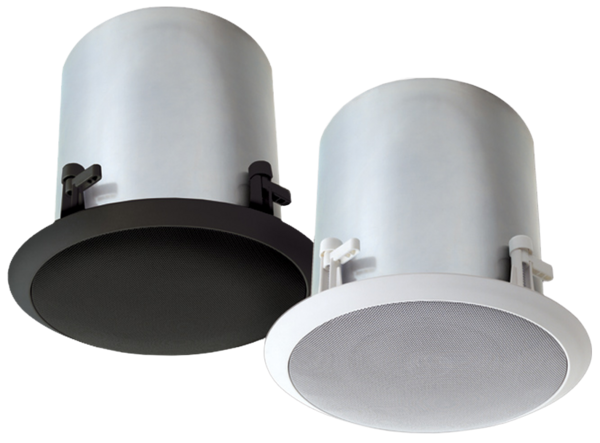

The Bogen HFCS1 ceiling loudspeaker delivers superior sound and clear intelligibility in a variety of ceiling environments. The system can be easily installed in hard-surfaced ceilings, suspended ceilings, and new constructions. The HFCS1 offers several levels of power output controlled via a front-mounted rotary tap selector switch (under grille). The low-distortion speaker design, coupled with a computer-matched venting system, delivers high intelligibility and exceptional low-frequency response for both music and speech reinforcement. The loudspeakers consists of one 6-1/2" (nominal) low-frequency transducer, one 3/4" (nominal) high-frequency transducer, and a filter network for dividing frequencies between the transducers.

• Wide-dispersion coaxial driver for broad, even coverage
• Good off-axis response with smooth contouring
• Computer-matched venting system for full bass output
• Large back can for deeper bass response
• High power handling capability for foreground sound
• Selectable power taps via front-mounted control
• Power taps (in watts): 32, 16, 8, 4, 2, & 1 for 70V; 32, 16, 8, 4, & 2 for 100V
• 16-ohm input for non-transformer, multi-speaker systems (selectable via tap selector switch)
• Compounded rubber surround, plus polypropylene and polycarbonate drivers for lasting performance
• Easy wiring with plug-in connector
• Integral swing-out clamps for easy installation
• Connector provides loop-through terminals for the next speaker
• Attachment point for seismic cable (safety cable)
• Input terminal cover with knockouts and safety eyelet provides protection for connections
• Off-white or Black textured finish easily painted to match theme decor
• Attractive, contemporary, sturdy steel grille assembly with fine perforations
• Listed to UL Standard 60065 for US and Canada
• Independently tested and meets requirements of UL-2043
