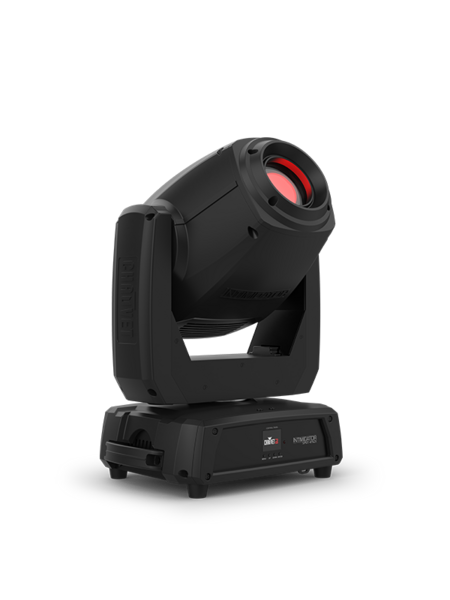

INTIMSPOT475ZX | MOVING HEAD, 250W, BUILT-IN RF RECEIVER, UPDATED CTO COLOR WHEEL, DUAL ROTATING PRISMS
INTIMSPOT475ZX
MOVING HEAD, 250W, BUILT-IN RF RECEIVER, UPDATED CTO COLOR WHEEL, DUAL ROTATING PRISMS
INTIMSPOT475ZX
MOVING HEAD, 250W, BUILT-IN RF RECEIVER, UPDATED CTO COLOR WHEEL, DUAL ROTATING PRISMS
- UM : EA
- Estimated Weight: 39.7
Unlock your best with X! Intimidator Spot 475ZX! This feature-packed powerhouse moving head packs a 250-watt punch for larger events. Intimidator Spot 475ZX comes equipped with a built-in RF receiver for wireless control using the RFC or RFC-XL optional remotes that provide a host of robust remote-control options. An updated CTO color wheel is on board and now software updates are easier than ever with the onboard USB-C port and a new home starting position for the moving head makes programming look smooth and more professional. Dual rotating prisms split the beam for great effects and wider coverage and the motorized zoom is perfect for short or long throw applications. Intimidator Spot 475ZX also boasts powerful gobo projection features including motorized zoom for crisp projections from nearly distance. Set, save, and recall 1 scene manually, directly from the full color LCD display. Beams always remain on the dance floor using the built-in, innovative Totem mode.
Features:
- Compact moving head designed for large events
- Onboard USB-C port allows for quick software updates
- Built-in RF receiver for wireless control using the RFC or RFC-XL optional remotes
- New home position allows for smoother programming
- Dual rotating prisms split the beam for great effects and cover a larger area
- Motorized zoom for short or long throw applications
- ¼-turn hanging bracket allows for single or dual clamp mounting options
- Project crisp gobos from nearly any distance with the motorized focus
- Beams always remain on the dance floor using the built-in, innovative Totem mode
- Set, save, and recall 1 scene manually, directly from the full-color LCD display
- powerCON-compatible power input/output connections saves setup time
| DMX Channels | 10 or 16 |
|---|---|
| DMX Connectors | 3 XLR |
| Pan and Tilt | 540°/270° |
| Pan and Tilt Ranges | 540°, 360°, 180° pan/270°, 180°, 90° tilt |
| Colors | 7 + white, split colors, continuous scroll at variable speeds |
| Gobos | 7 + open (6 metal + 1 glass), rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds |
| Light Source | 1 LED (cool white) 250 W, (10 A), 50,000 hours life expectancy |
| Strobe Rate | 0 to 20 Hz |
| Lumens | 10,710 |
| Power Linking | 3 units @ 120 V; 7 units @ 230 V |
| Input Voltage | 100 to 240 VAC, 50/60 Hz (auto-ranging) |
| Power and Current | 378 W, 3.4 A @ 120 V, 60 Hz; 372 W, 1.9 A @ 230 V, 50 Hz |
| Weight | 36.2 lb (16.5 kg) |
| Size | 14.3 x 10 x 21 in (363 x 250 x 531 mm) |
| Approvals | CE, UKCA, RoHS, MET |
| Gobos | 8 + open, indexing, continuous scroll at variable speeds |
| Gobo Size | 25.7 mm outside, 21 mm image, 1.3 mm max thickness |
| Prism | 5-facet linear, bi-directional at variable speeds |
| Prism | 6-facet round, bi-directional at variable speeds |
| Zoom Angle (motorized) | 13° to 28° |
| Illuminance (13°) | 90,979 lux @ 2 m |
| Illuminance (28°) | 24,565 lux @ 2 m |
| Illuminance (13°) | 14,557 lux @ 5 m |
| Illuminance (28°) | 3,930 lux @ 5 m |
| Color Temperature | 15,000 K |
| Optional Controllers | RFC, RFC-XL |
