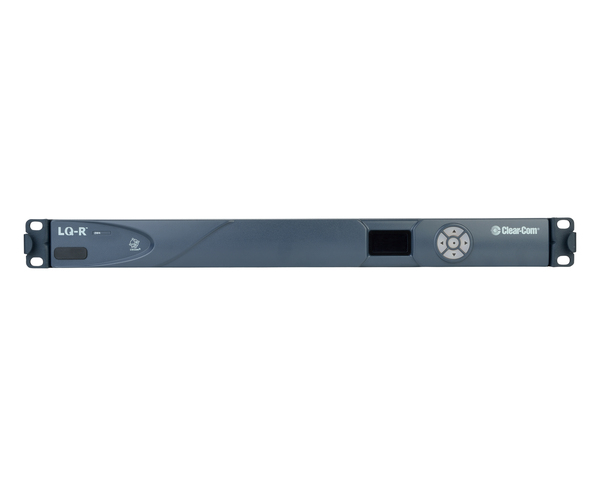

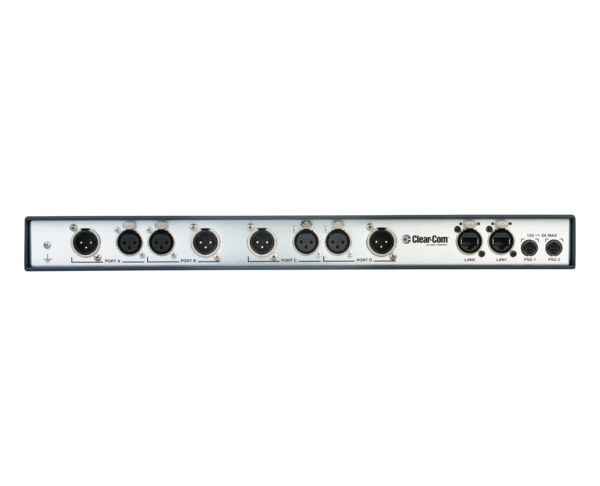

LQ-R2W4 | FOUR CHANNEL PARTYLINE IP COMMUNICATIONS INTERFACE FOR EXTENDING PARTYLINE AUDIO COMMUNICATIONS

LQ-R2W4
FOUR CHANNEL PARTYLINE IP COMMUNICATIONS INTERFACE FOR EXTENDING PARTYLINE AUDIO COMMUNICATIONS

LQ Series devices provide intercom connectivity for linking multiple systems together over IP networks, extending intercom channels to remote locations, adding mobile clients and SIP/VoIP telephony to existing intercom systems, and enable extra audio I/O for both HelixNet and Eclipse HX systems.

FEATURES

• - Available as a compact box or a 1RU panel

• - 2-, 4- and 8-port IP interface devices

• - Supports up to 8 SIP client connections per LQ device (license required)

• - Supports up to 8 Agent-IC clients per LQ device (license required)

• - Connects to HelixNet via HLI-ET2 over LAN and WAN

• - Connect LQ to LQ over LAN, WAN or Internet

• - Adjustable bandwidth on a per port basis

• - Uses low-latency OPUS codec

• - Clear-Com and RTS 2-wire connectivity

• - Eclipse HX connection via IVC-32-HX card over LAN, WAN, and Internet IP connections

• - Can remotely connect to up to 8 IVC32-HX ports per LQ device

• - 2-wire powering, termination and auto-nulling

• - 4-wire ports support data and audio for Clear-Com Eclipse and Drake 4000 panels

• - Up to 6 devices can be connected together

• - Browser-based configuration software (PC, MAC, Tablet)

• - 2-port devices powered via local 12V

• - DC power supply or PoE

• - 4- and 8-port devices powered via redundant 12V DC power supplies

• - Rugged and lightweight

• - Yellow OLED front panel menu display
