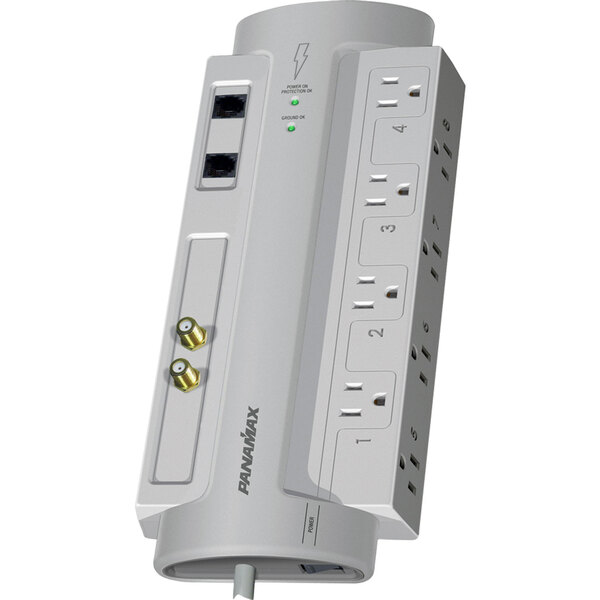

SP8-AV | SURGE PROTECTOR 8 AV, ELIMINATES VOLTAGE IRREGULARITIES AND PROTECTS YOUR AV SYSTEM.
SP8-AV
SURGE PROTECTOR 8 AV, ELIMINATES VOLTAGE IRREGULARITIES AND PROTECTS YOUR AV SYSTEM.
SP8-AV
SURGE PROTECTOR 8 AV, ELIMINATES VOLTAGE IRREGULARITIES AND PROTECTS YOUR AV SYSTEM.
- UM : EA
AC power, telephone and coax lines can provide direct pathways for surges and spikes to enter and damage expensive audio/video equipment. Panamax’s SP8-AV eliminates voltage irregularities and protects your AV system.
Features
Power Status LED.
In / Out Telephone Connectors.
In / Out Coax Connectors for Cable/Sat.
Six (6)ft, Power Cord with Right Angle 45 degree Offset Plug.
Exclusive Protect or Disconnect circuitry. In the event of a catastrophic surge such as lightning, it completely disconnects AC power to connected equipment.
Ground OK LED.
8 AC Outlets Provide Power Proection with Transformer Spacing Between Outlets.
ON / OFF Power Switch and 15A Circuit Breaker.
|
Voltage Protection Rating (UL 1449 3rd Edition, 3,000A) |
500V |
|
Thermal Fusing |
Yes |
|
Single Pulse Energy Dissipation |
1125 Joules |
|
Response Time |
< 1 ns |
|
Peak Impulse Current |
60,000 Amps |
|
Telco Protection |
|
|
Wires Protected |
1 Line (3, 4) |
|
Suppression Modes |
Metallic & Longitudinal |
|
Fuseless / Auto-reseting |
Yes |
|
Connectors |
RJ-11 |
|
Clamping Level |
260V |
|
Capacitance |
30pf (approx.) |
|
Universal Coaxial Protection |
|
|
Shielded |
Yes |
|
Insertion Loss |
< 0.5 dB |
|
Frequency Range |
OMHz – 2.2 GHz |
|
Connections |
Female “F”, Gold Plated |
|
Clamping Level |
75V |
|
Bidirectional |
Yes |
