ST-UMX3 | UNIVERSAL AUDIO MIXER - 3 MIC OR LINE X 1 MIC OR LINE
ST-UMX3
UNIVERSAL AUDIO MIXER - 3 MIC OR LINE X 1 MIC OR LINE
ST-UMX3
UNIVERSAL AUDIO MIXER - 3 MIC OR LINE X 1 MIC OR LINE
- UM : EA

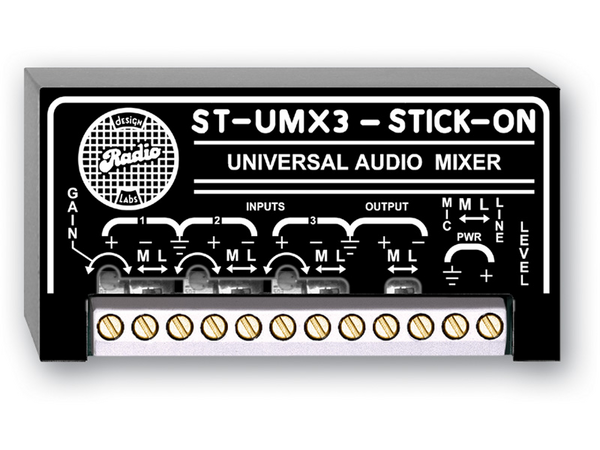

The ST-UMX3 is a three-channel audio mixer for
combining mic-level or line-level signals to a single output. A MIC/LINE switch
is provided for each input. A separate MIC/ LINE switch selects the output
level. Each input features a separate preamplifier circuit, which isolates it
from the other inputs. An audio taper single turn gain adjustment is provided
for each of the three input preamps. Signals from the three preamps are
actively summed and fed to the output amplifier which includes an RDL® dual-LED
VU meter.
Each input level is set while observing the LED output level meter. The
dual-LED output meter follows standard VU ballistics. The intensity of the
green LED progresses from minimum at -11 dBu to full intensity at +4 dBu.
The flexibility of switching each input and the output between MIC or LINE
allows installers to address a wide variety of mixing solutions with only one
product type.
