TPU250 | AMPLIFIER 250 WATT

TPU250
AMPLIFIER 250 WATT

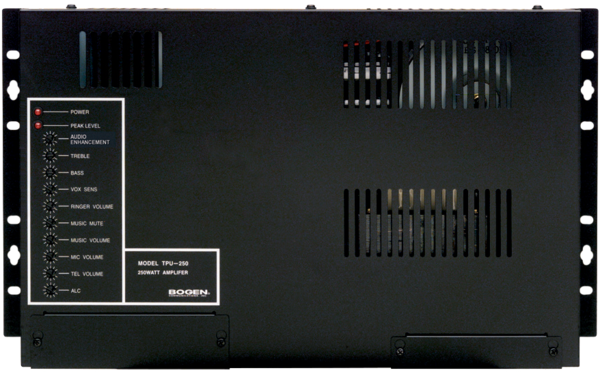

The Bogen TPU250 is a wall-mounted telephone paging amplifier rated at 250 watts, respectively. Model can also be rack-mounted*. The TPU amplifier permit paging from telephone and/or microphone; music input through an RCA jack or screw terminals; and voice-activated, variable level, music mute with fade back after page. The TPU amp include a night ringer which sends an electronic ringing tone signal through all speakers, alerting personnel of incoming calls. Jacks are also provided to bridge two TPU amplifiers to double the number of inputs and output power.

FEATURES

• - 250-watt model
• - Inputs for 600-ohm balanced telephone line, Lo-Z balanced microphone, and background music
• - Music input (RCA jack or screw terminals)
• - Integral automatic level control (ALC) circuit for controlling pages made by persons with varying voice levels and paging techniques
• - Page from telephone and/or microphone
• - Signal-activated paging channel automatically mutes background music
• - Adjustable background music muting level during a page
• - Music gradually returns to its normal level after a page
• - Audio Enhancement circuit increases intelligibility, improves perceived loudness (with no increase in power), and reduces listener fatigue
• - Separate controls for page volume, music volume, night ringer, music mute, and Audio Enhancement
• - Bass and treble controls
• - Built-in night ringer activated by contact closure or by 90V ring signal
• - 25V and 70V outputs are available on the TPU250
• - VOX sensitivity level control eliminates accidental transmission of background noise from a paging telephone
• - Thermal and electronic overload protection
• - Jacks provided for bridging additional TPU amplifiers
• - Brackets are attached to each model for easy wall mounting; the TPU250 can also be rack-mounted with included brackets;
• - Peak level indicator lights when amplifier is driven into clipping
• - 120V AC, 60 Hz power source
• - Listed to UL Standard 60065 for U.S. & Canada
