VSR-264 | AUDIO/VIDEO STREAMER/RECORDER - AV OVER IP ENCODER AND DECODER APPLIANCE FOR FULL HD LIVE STREAMING
VSR-264
AUDIO/VIDEO STREAMER/RECORDER - AV OVER IP ENCODER AND DECODER APPLIANCE FOR FULL HD LIVE STREAMING
VSR-264
AUDIO/VIDEO STREAMER/RECORDER - AV OVER IP ENCODER AND DECODER APPLIANCE FOR FULL HD LIVE STREAMING
- UM : EA

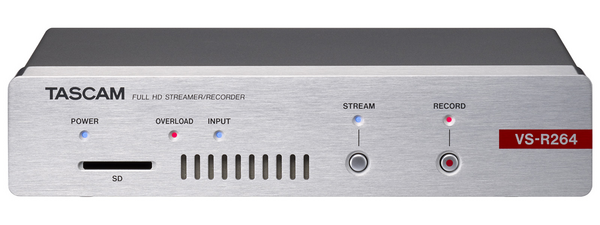

The VS-R264 is a Full HD AV over IP streaming encoder and decoder that simultaneously records, encodes, streams, and decodes Full HD video streams (1920x1080) using H.264 long GOP encoding with bit rates up to 30 megabits over standard networks suitable for 100Mbps or 1Gbps.
|
VS-R264 |
VS-R265 |
Video inputs and outputs |
|
|
HDMI IN |
HDMI v1.4a (Type A receptacle) |
|
HDMI OUT |
HDMI v2.0 (Type A receptacle) |
|
Input Resolutions |
|
|
2160p |
- |
30 / 29.97/ 25 / 24 / 23.98 fps |
1080p |
60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98 fps |
|
720p |
60 / 59.94 / 50 fps |
|
576p |
50 fps |
|
480p |
60 / 59.94 fps |
|
Frame Rate Limiting |
on/off |
|
Encode Scalling Resolutions |
Passthrough / 1920x1080p / 1280x720p / 950x540p / 720x576p / 720x480p / 640x360p / 480x270p / 320x180p |
Passthrough / 3840x2160p / 1920x1080p / 1280x720p / 950x540p / 720x576p / 720x480p / 640x360p / 480x270p / 320x180p |
Encoding Format |
H.264 |
H.264 / H.265 |
Encoding bitrates |
500k to 30M bps |
|
Bit rate Control |
Variable, Constant |
|
Key frame interval |
|
|
Seconds |
0.25 - 16.5(default: 1) in 0.25 intervals |
|
Frames |
3 - 1000 |
|
Video streaming |
|
|
Supported protocols |
RTMP, RTMPS, RTSP, HLS, RTP, UDP |
|
Number of simultaneous stream |
8 (3 x RTMP/RTMPS, 1 x RTSP, 1 x HLS, 2 x
RTP/UDP Unicast?1
x RTP/UDP Multicast) |
|
Audio inputs and outputs |
|
|
ANALOG IN (BALANCED) |
|
|
Connectors |
Euroblock (balanced) 3.81 mm pitch |
|
Nominal input level |
+4dBu(1.23Vrms, when Ref.Level set to other than -9dBFS) |
|
Maximum input level |
+15dBu(4.36Vrms, Ref.Level -9dBFS) |
|
Input impedance |
10 kO or higher |
|
ANALOG IN (UNBALANCED) |
|
|
Connector |
3.5mm (1/8") stereo mini jack |
|
Nominal input level |
-10dBV (0.316Vrms) |
|
Maximum input level |
+6dBV (2.0Vrms) |
|
Input impedance |
10 kO |
|
ANALOG OUT (BALANCED) |
|
|
Connectors |
Euroblock 3.81 mm pitch |
|
Nominal output level |
+4dBu(1.23Vrms, when Ref.Level set to other than -9dBFS) |
|
Maximum output level (switchable) |
+15dBu(4.36Vrms, Ref.Level -9dBFS) |
|
Output impedance |
200O or lower |
|
ANALOG OUT (UNBALANCED) |
|
|
Connector |
3.5mm (1/8") stereo mini jack |
|
Nominal output level |
-10dBV (0.316Vrms) |
|
Maximum output level |
+6dBV (2.0Vrms) |
|
Output impedance |
200O |
|
Output Volume |
-8, -72 to +6dB (1dB step) |
|
Audio Codec |
AAC, 64k to 512k bps, 32k/44.1k/48k Hz |
|
Video / audio recording |
|
|
Recording media |
USB Drive, SD/SDHC card, Internal storage |
|
Recording format |
MPEG2-TS?MPEG4 |
|
Recording bit rates |
500k to 30M bps |
|
Control input/output |
|
|
ETHERNET / PoE+ |
|
|
Connector |
RJ-45 |
|
Transmission protocol |
TCP/IP?UDP?HTTP |
|
Gigabit Ethernet standard |
1000BASE-T (IEEE 802.3ab) |
|
Cables |
Category 5e or faster STP cables |
|
USB |
|
|
Connector |
USB A-type 4-pin |
|
Protocol |
USB 2.0, USB 3.0 |
|
Other |
|
|
Power |
PoE Plus Class 4 |
|
Power consumption |
12.2W |
|
Dimensions |
214(W) × 44.5(H) × 136.1(D)mm (including protrusions) |
|
Weight |
850g |
|
Operating temperature range |
0 to 40 °C |
|
Included items |
Installation brackets x2, Euroblock plugs x4, Cable band kit, USB memory(Including TASCAM DISCOVERY, reference Manual), Quick Start guide (Warranty) |
* 0dBu=0.775Vrms
