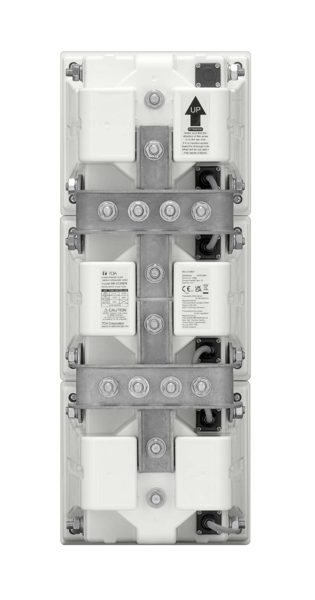

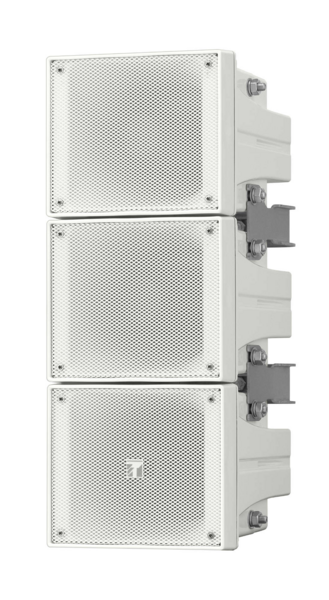

HA-2120EN | Long Range Horn Array Speaker
HA-2120EN
Long Range Horn Array Speaker
Click image to enlarge
HA-2120EN
Long Range Horn Array Speaker
- UM : EA
The HA-2120EN is an array of multiple horn speakers designed for voice transmission over long distances without acoustic correction. It includes a built-in high-pass filter to prevent bass frequencies that may damage the speaker. The unit has a drip-proof construction and a salt-resistant paint finish for durability in outdoor, permanent installations.
The HA-2120EN complies with the European Standard EN 54-24:2008 for loudspeakers used in voice alarm systems and meets the British Standard BS 5839-8:2008. The Declaration of Performance (DoP) number is 23-104.
Features:
- Horn array for clear long-range voice projection
- IP66-rated for harsh outdoor use
- Weatherproof durability with double drip-proof design
- Salt-resistant paint finish
- Wide horizontal coverage for broad public address
- Built-in high-pass filter for speaker protection
- EN 54-24 compliant for evacuation systems
- Optional mounting bracket for flexible installation
| Rated Input | 120 W |
|---|---|
| Rated Impedance | 100 V line: 83 Ω (120 W), 170 Ω (60 W) |
| Sensitivity | 113 dB (1 W, 1 m) (500 Hz - 5 kHz, IEC60268-5) |
| Max. SPL | 133 dB (120 W, 1 m) (500 Hz - 5 kHz, IEC60268-5) |
| Frequency Response | 550 Hz - 4.3 kHz (-10 dB), 290 Hz - 8 kHz (-20 dB) |
| Speaker Component | Horn speaker unit x 3 |
| Input Terminal | Ceramic terminal (3-pole), can be bridge-connected x1, Ceramic terminal (2-pole) x1, Thermal fuse included |
| IP Code | IP66 |
| Operating Temperature | -20 °C to +55 °C (-4 °F to 131 °F) |
| Finish | Case: FRP, white (RAL 9016 equivalent), paint |
×
×
