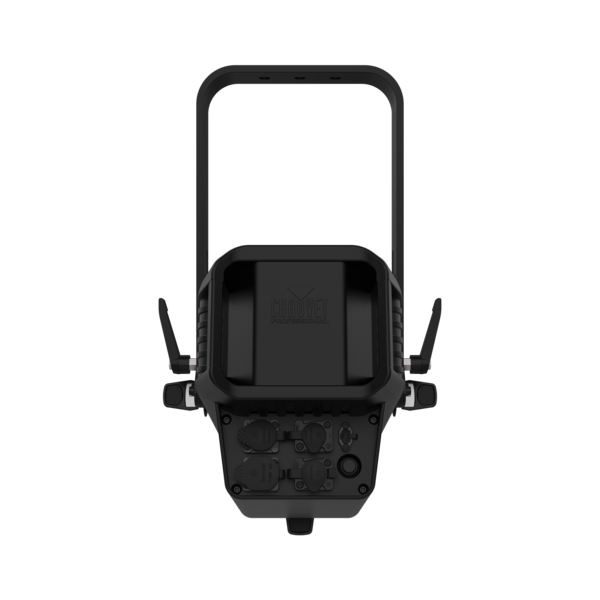

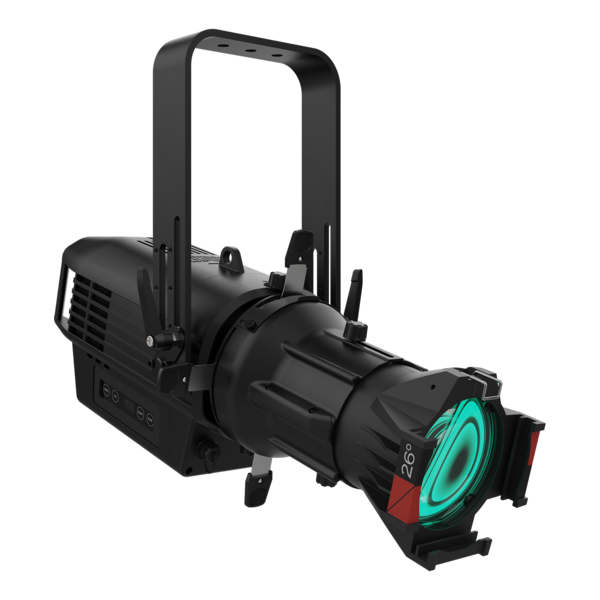

OVATIONREVEE3IP | IP MULTI-COLOR LED ELLIPSOIDAL FIXTURE, BLACK
OVATIONREVEE3IP
IP MULTI-COLOR LED ELLIPSOIDAL FIXTURE, BLACK
OVATIONREVEE3IP
IP MULTI-COLOR LED ELLIPSOIDAL FIXTURE, BLACK
- UM : EA
- Estimated Weight: 26.0
Ovation Rêve E-3 IP is an outdoor-ready, LED ERS-style lighting fixture. Virtually silent and IP65 rated. It’s perfect for studio, theatre, and film applications – both indoors and out. It has the brightest light engine that can produce full-spectrum colors and tunable whites. Ovation Rêve E-3 IP features adjustable PWM, +/- green adjustment and emulated red-shift, and ultra-smooth 16-bit dimming curves and speeds to complement any lighting scheme, anywhere.
Features:
- Delivers superior color rendering with a 93.5 CRI from a 6-color LED system.
- Offers linear color temperature presets from 2800 K to 8000 K for precise white balancing.
- Built with a fanless, IP65-rated housing for silent, all-weather operation.
- Achieve seamless fades and flicker-free operation with 18-bit dimming and adjustable PWM.
- Provides precise color control with plus/minus green adjustment and emulated red-shift.
- Supports DMX and RDM protocols for versatile control and flexible setup options.
| Light Source | 91 LEDs (12 red, 19 green, 3 blue, 9 royal blue, 24 amber, 24 mint) 3.5 to 10 W, (2.4 A), 50,000 hours life expectancy |
|---|---|
| Color Temperature (range) | 2800 to 8000 K |
| Color Temperature (at full) | 6,428 K |
| CRI | 93.5 |
| Selectable PWM | 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 25,000 Hz |
| Power Connection | Edison (Local) plug to Seetronic Powerkon IP65 |
| Power Input | Seetronic Powerkon IP65 |
| Power Output | Seetronic Powerkon IP65 |
| Data Connectors | 5-pin XLR |
| Cable Length (power) | 5 ft (1.5 m) |
| Software Connection | Type-C USB |
| Control Protocol | DMX, RDM |
| DMX Channels | 1, 5, 6, 8, 12, 14ch1, 14ch2, 18 or HSV |
| Modes/Personalities | 9 personalities (1, 5, 6, 8, 12, 14ch1, 14ch2, 18, HSV) |
| Certifications | CE, MET, FCC, UKCA |
| IP Rating | IP65, temporary outdoor/wet use, with pressure equalizing M12 GORE valve |
| Temperature (Ambient) | -4 °F to 113 °F (-20 °C to 45 °C) |
