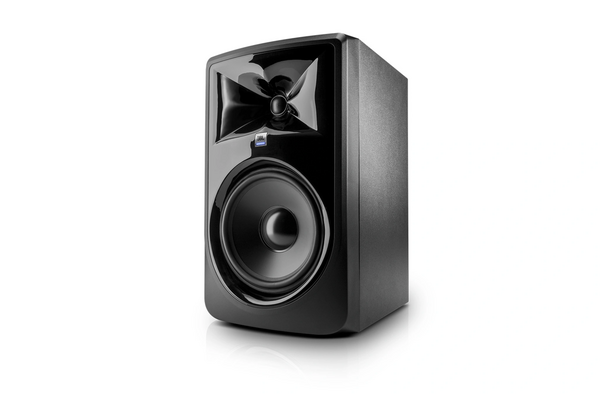

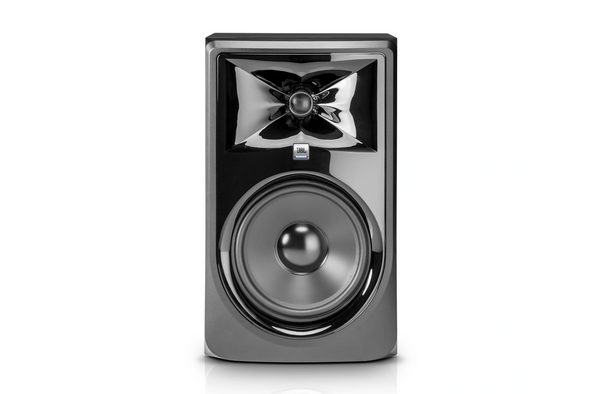

308PMKII | 8" 2-WAY POWERED STUDIO MONITOR SPEAKER, BLACK
308PMKII
8" 2-WAY POWERED STUDIO MONITOR SPEAKER, BLACK
308PMKII
8" 2-WAY POWERED STUDIO MONITOR SPEAKER, BLACK
- UM : EA
- Estimated Weight: 20.3
The next-generation JBL 308P MkII powered studio monitor makes legendary JBL performance available to every studio. With the revolutionary JBL Image Control Waveguide and refined transducers, JBL 308P MkII offers stunning detail, precise imaging, a wide sweet spot and impressive dynamic range that enhances the mix capabilities of any modern workspace. Leveraging patented technologies derived from the JBL 7 Series and M2 Master Reference Monitors and sporting a sleek, modern design, JBL 308P MkII delivers outstanding performance and an enjoyable mix experience at an accessible price.
Features
Patented Image Control Waveguide for detailed imaging and a broad, room-friendly sweet spot
Next-generation JBL transducers for optimized transient response and improved linearity
Patented Slip Stream low-frequency port for superior bass performance at all playback levels
Dual integrated, custom Class-D amplifiers provide 112 watts of power for high output and dynamic range
New Boundary EQ settings compensate for low frequency variants introduced by the environment
HF Trim switch adjusts high-frequency output to room acoustics or personal preferences

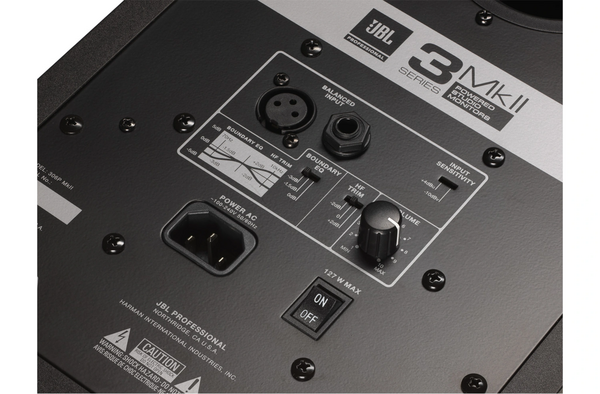

Flexible connectivity with balanced XLR and 1/4" TRS inputs, +4dBu / -10dBV input-sensitivity switch and adjustable volume control
Engineered to JBL Linear Spatial Reference design criteria for outstanding accuracy in any working space
Strenuous JBL 100-hour full-power test ensures years of reliability
Sleek, modern design provides a visual upgrade to any studio
|
LF Driver |
203mm (8") |
|
HF DRIVER SIZE |
25mm (1") |
|
HF DRIVER TYPE |
Soft dome |
|
Crossover |
1800Hz 4th order acoustic Linkwitz-Riley |
|
OK FOR USE NEAR MAGNETICALLY SENSITIVE EQUIPMENT |
Yes |
|
INPUT SENSITIVITY (-10dBV INPUT) |
92dB / 1m |
|
Power Configuration |
Bi-amplified |
|
HF DRIVER POWER AMP |
56W, Class-D |
|
LF Driver Power Handling |
56W, Class-D |
|
Frequency Response (±3 dB) |
45Hz – 20kHz |
|
Frequency Range (-10dB) |
37Hz – 24kHz |
|
LOW FREQUENCY EXTENSION (-10dB) |
37Hz |
|
Maximum Continuous SPL |
102dB |
|
Maximum Peak SPL |
112dB |
|
MAXIMUM PEAK INPUT LEVEL (-10dBV / +4dBu) |
+6dBV / +20.3dBu |
|
SYSTEM DISTORTION CRITERIA |
<10% THD at maximum output with full compressor / limiter engagement |
|
ELECTRICAL DISTORTION CRITERIA |
0.2% THD @ 1kHz / 2.83VRMS output; <1% THD @ 1kHz, full rated output |
|
Signal to Noise Ratio |
75dBA (A-Weighted), 70dBr (unweighted), relative to 2.83VRMS output |
|
Coverage Angle |
120° x 90° |
|
Input Connectors |
1 x XLR female, 1 x TRS female, balanced |
|
HF TRIM CONTROL |
-2dB, 0dB, +2dB |
|
BOUNDARY EQ |
LF Shelf @ 50Hz: -3dB, -1.5dB, 0dB |
|
AC INPUT VOLTAGE |
100 – 240VAC (±10%), 50 / 60Hz |
|
ENCLOSURE TYPE |
Ported |
|
Enclosure |
15mm MDF |
|
ENCLOSURE FINISH |
Matte black PVC |
|
BAFFLE CONSTRUCTION |
Injection-molded structural ABS |
|
CABINET DIMENSIONS (H x W x D) |
419 x 254 x 308mm (16.5" x 10" x 12.1") |
|
DISPLAY CARTON (H x W x D) |
473 x 312 x 358mm (18.6" x 12.3" x 14") |
|
SHIPPING CARTON (H x W x D) |
491 x 326 x 372mm (19.3" x 12.8" x 14.6") |
|
Net Weight (each) |
8.1 kg (17.87 lbs) |
|
SHIPPING GROSS WEIGHT |
9.4 kg (20.73 lbs) |
