AH-AHM-32 | 32X32 AUDIO MATRIX PROCESSOR 12X12 LOCAL ANALOG I/O, UP TO 128X128 AUDIO NETWORKING, 96KHZ

AH-AHM-32
32X32 AUDIO MATRIX PROCESSOR 12X12 LOCAL ANALOG I/O, UP TO 128X128 AUDIO NETWORKING, 96KHZ

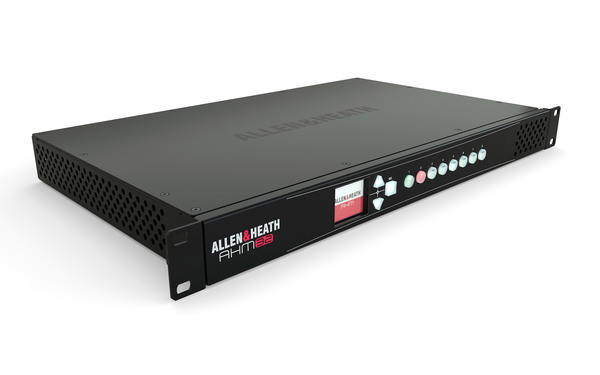

The Allen & Heath AHM-32 is a 32×32 audio matrix processor engineered for small- to medium-scale installed sound applications. Built on Allen & Heath’s AHM family platform, the AHM-32 delivers fast configuration, powerful audio processing, and flexible integration for corporate spaces, houses of worship, education facilities, and retail environments. It features 12 local analog inputs and 12 analog outputs, with expansion up to 32×32 via Dante, AES67, or additional audio expanders. Equipped with comprehensive DSP tools—including EQ, dynamics, delay, and acoustic echo cancellation—the AHM-32 ensures optimal audio performance across zones. Control is supported through Allen & Heath’s ecosystem of remote controllers, GPIO, third-party systems, and customizable apps, making it a versatile and scalable solution for integrators.

With 32 zone outputs, echo cancelling and audio networking options, AHM-32 is ideal for multi-room installations in hospitality, corporate and education environments.

·         32×32 Processing Matrix - Flexible routing with configurable processing on all 32 outputs

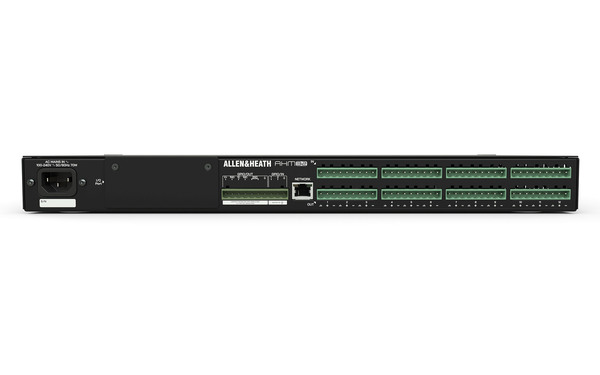

·         12×12 Local Analogue I/O - 12x mic/line inputs and 12x relay protected line outputs on Phoenix connectors

·         I/O Port for Audio Networking (Up to 128×128) - Card options include Dante, MADI, Waves and Slink

·         Processing Includes:

o   4x Automatic Mic Mixers

o   ANC (Ambient Noise Compensation)

o   Priority Ducking

o   8-band PEQ, dynamics and delay on every input and zone

o   Speaker processing with x-over filter, delay, limiter, PEQ and All-Pass Filters

o   NTP support

o   EQ Ganging (Relative, Absolute, and Mirrored Controls)

·         Dante 96kHz Option Card (AES67 and DDM ready)

·         SLink 128×128 Option Card for Audio Expansion

·         32 Configurable Processing Outputs – Mono / Stereo Zones or Speaker Processing

·         96kHz FPGA Core With Ultra-low Latency

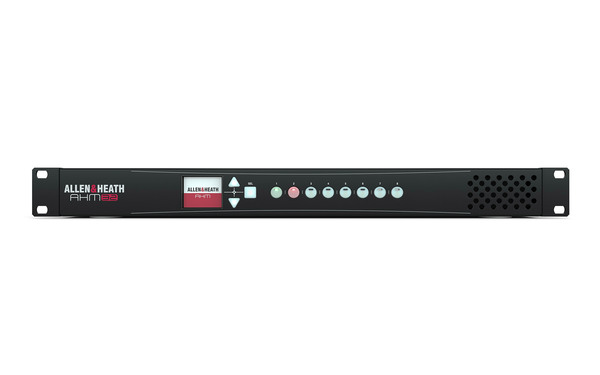

·         Front Panel Screen and Navigation

·         8x SoftKeys

·         Compatible With IP1, IP6, IP8 Remote Controllers

·         2×2 Local GPIO Plus Networkable GPIO Interface

·         TCP/IP Protocol for Third Party Integration

·         Crestron, AMX and Extron Drivers

·         Mac / Windows System Manager Software

·         Custom Control app and Editor for BYOD

·         16 User Profiles

·         Integrated Stereo Playback

·         Event Scheduler
