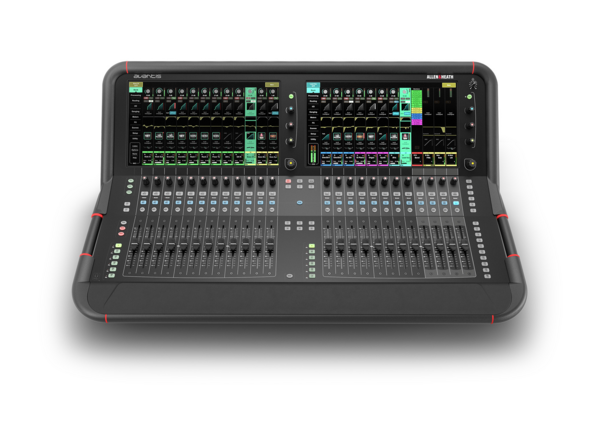

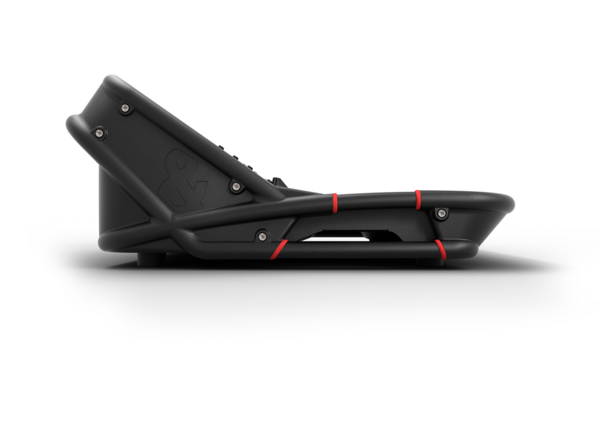

AH-AVANTIS | 96KHZ FPGA PROCESSING, 64 INPUT CHANNELS, 24 FADERS / 6 LAYERS, 42 MIX BUSSES

The Avantis digital mixer provides 64 mono input channels, 12 stereo FX returns and 42 flexible mix buses.

The third mixer based on our 96kHz XCVI FPGA engine, Avantis puts all our next‐generation technology in a standalone 64 channel / 42 configurable bus console, with dual Full HD touchscreens, a super‐flexible workflow with Continuity UI, extensive I/O options, add‐on processing from our flagship dLive mixing system, and a rugged full

metal chassis.

Fully compatible with all the dLive I/O cards, the full ‘Everything I/O’ range and IP controllers.

Features:

• 96kHz 64 channel / 42 bus digital mixer
• XCVI FPGA core with ultra-low latency (0.7ms)
• Fully configurable mix bus architecture
• Super-tough, full metal chassis
• Continuity UI seamlessly connects physical and touchscreen controls for the fastest, most intuitive workflows
• dPack option adds dLive processing, including 16 Dyn8 engines, plus per-channel zero-latency DEEP Compressors and Dual-Stage Valve preamp
• 12 RackExtra FX slots with dedicated stereo returns
• 16 DCAs
• Dual 15.6” Full HD capacitive touchscreens with gesture control
• AMM (Automatic Mic Mixer) up to 64 channels across 1, 2 or 4 zones
• Fully assignable layout
• 144 fader strips (24 faders, 6 layers) with optional dedicated master section
• SLink port for connection to Remote I/O Expanders and the ME Personal Mixing System

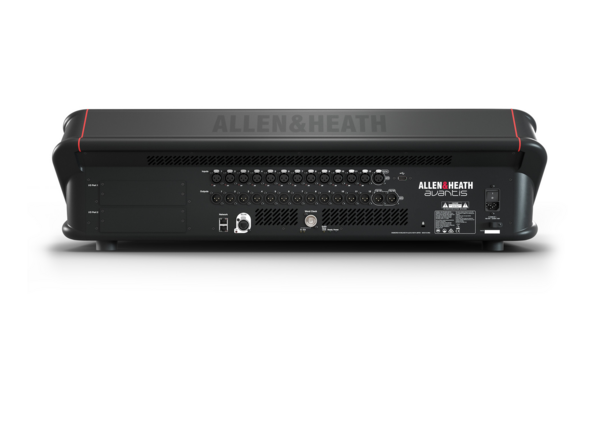

• 12 analogue XLR Inputs / 12 analogue XLR Outputs
• 1 Stereo AES In / 2 Stereo AES Out
• 2 I/O Ports, both capable of 128×128 operation at 96kHz – for optional cards inc. Dante, MADI and gigaACE
• User configurable rotary controls
• 24 assignable SoftKeys
• Comprehensive metering with multi-point peak detection
• Internal storage for stereo playback and recording
• USB stereo playback
• BNC Word Clock
