AWC62-BK | COMPACT ALL-WEATHER 2-WAY CO-AXIAL LOUDSPEAKER WITH 6.5" LF, BLACK
AWC62-BK
COMPACT ALL-WEATHER 2-WAY CO-AXIAL LOUDSPEAKER WITH 6.5" LF, BLACK
AWC62-BK
COMPACT ALL-WEATHER 2-WAY CO-AXIAL LOUDSPEAKER WITH 6.5" LF, BLACK
- UM : EA
- Estimated Weight: 20.0

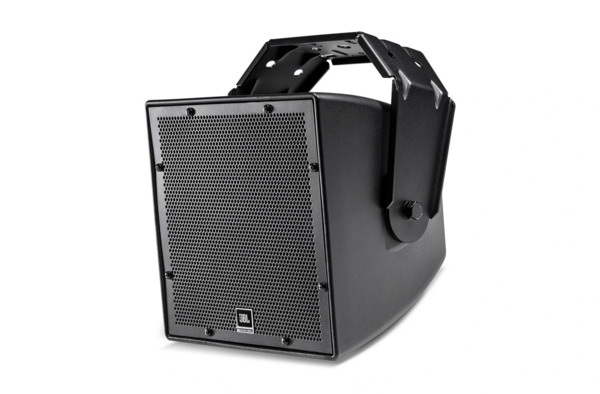

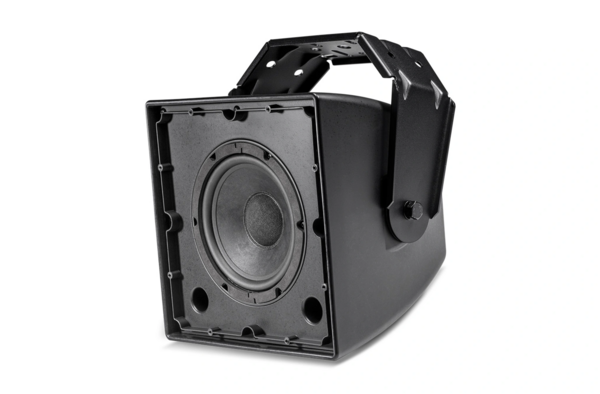

The AWC62-BK is a compact, 2-way coaxial loudspeaker featuring a 6.5-inch low-frequency driver. It is designed as a full-range system with weather-resistant construction suitable for both indoor and outdoor environments.
Features:
- Weather-resistant IP56 rating
- 110° x 110° broadband pattern control
- 165 mm (6.5 in) woofer with Kevlar-reinforced cone
- 25 mm (1 in) exit compression driver
- Extraordinary clarity for speech with extended frequency response for music
- Advanced high-slope crossover network for constant coverage and smooth midrange
- 175 Watt power handling (continuous pink noise) with high sensitivity
- High-power passive crossover network
- Overload protection
- 70 Hz – 18 kHz frequency response
- 120 Watt 70V/100V multi-tap built-in transformer or direct 8Ω low impedance
| Frequency Range | 70 Hz – 18 kHz |
|---|---|
| Frequency Response | 100 Hz – 16 kHz |
| Coverage Pattern | 110º x 110º |
| Directivity Factor (Q) | 7.2 (1 k – 16 kHz) |
| Directivity Index (DI) | 7.9 dB (1 k – 16 kHz) |
| System Power Rating | 175 W 2 hrs, 120 W 100 hrs (IEC rated) |
| Sensitivity | 92 dB (2.83V @ 1m, 100 Hz – 18 kHz) |
| Maximum SPL | 114 dB direct (peaks 120 dB), 112 dB at 120 W tap |
| Crossover Network | 1.8 kHz, 3rd order high-pass plus conjugate low-pass |
| Nominal Impedance | 8 ohms |
