CSM14 | 4 INPUT - 1 OUTPUT MIXER, FANLESS, 1U HALF-RACK, MOUNTING KIT INCLUDED
CSM14
4 INPUT - 1 OUTPUT MIXER, FANLESS, 1U HALF-RACK, MOUNTING KIT INCLUDED
CSM14
4 INPUT - 1 OUTPUT MIXER, FANLESS, 1U HALF-RACK, MOUNTING KIT INCLUDED
- UM : EA
- Estimated Weight: 7.0

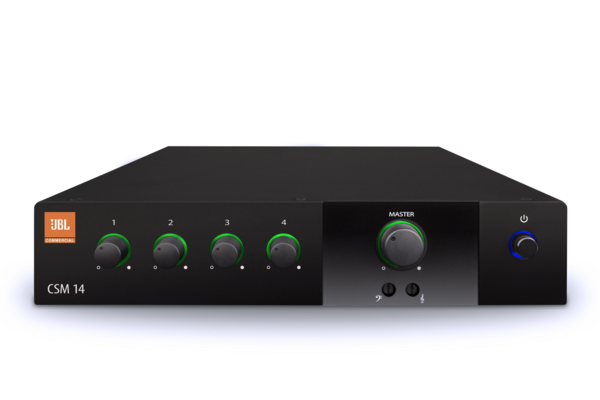

The JBL CSM14 is a 4-input, 1-output commercial mixer from the JBL Commercial Series, designed for background music and paging applications in restaurants, retail, corporate, education, and hospitality environments. With simple front-panel controls and professional features, the CSM-14 allows multiple audio sources to be mixed into a single output zone. It offers VOX ducking, priority muting, remote volume control via JBL CSR-V wall controllers, and Euroblock-style connections for fast integration. Featuring HARMAN’s GreenEdge™ technology, the CSM-14 delivers energy-efficient performance without compromising audio quality. Compact and rackmountable, this mixer provides integrators with a reliable, scalable solution for single-zone commercial audio systems.
The JBL Commercial Series Mixers integrate technology from multiple HARMAN brands to provide audio mixing solutions for various commercial applications, including background music, security, and paging systems. These mixers are suitable for use in environments such as schools, hospitals, restaurants, and fitness facilities. They include RJ45 connectors designed for compatibility with JBLCSR-V in-wall volume controls. The power supply supports universal AC input voltages ranging from 100 to 240 VAC at 50/60 Hz. The units comply with HARMAN’s GreenEdge standards for energy efficiency, featuring a lightweight and compact design that meets RoHS environmental regulations.
- 4 inputs with 1 output
- Fanless 1U design
- Independent bass/treble controls

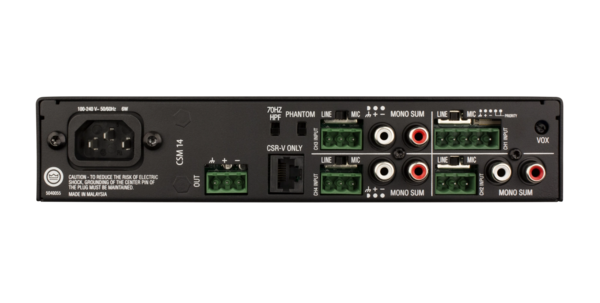

- Euro-block mic/line input and output connectors
- Unbalanced RCA inputs
- Supports JBL CSR-V wall controller via Ethernet
- Priority muting
- VOX ducking
- Phantom power
Use Options: Restaurants, cafés, and bars (single-zone systems) - Retail stores and boutiques - Hotels and hospitality venues - Educational facilities with single-zone paging - Corporate AV systems requiring simple audio routing
| Inputs | 4 |
|---|---|
| Output Channels | 1 |
| Input Sensitivity (Mic) | 3 mVrms |
| Input Sensitivity (Line) | 775 mVrms |
| Input Sensitivity (RCA) | 300 mVrms |
| Phantom Power | 27 VDC |
| Configurable Output Routing | No |
| AC Line Voltage | 100 - 240 V, 50/60 Hz |
