M-8Z | MERIT Z POWER CONDITIONER WITH EVS SURGE PROTECTION, 12 OUTLETS, USB-A/C CHARGING, AUTO RESET

The M-8z is the essential power conditioner in the Merit Z Series, delivering trusted surge protection and clean power at an accessible price point. It features Extreme Voltage Shutdown (EVS) technology that continuously monitors incoming AC and instantly disconnects during dangerous over or under voltage events to protect your connected equipment. Built-in standard-level surge protection with a "Protection OK" indicator, combined with AC noise filtration, reduces RFI/EMI interference for cleaner, more stable power. Convenient front-panel USB-C (5V/3A) and USB-A (5V/2.4A) fast charging ports keep phones, tablets, and wireless accessories powered right from your rack.

Applications

·         Recording Studios & Home Studios

Clean, filtered power eliminates RFI/EMI interference for quieter audio, while EVS protection safeguards mixers, interfaces, and outboard gear from dangerous voltage events

·         Live Sound & Touring Rigs

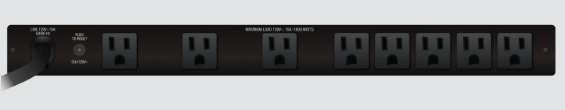

The 15A rating handles multiple rack-mounted amplifiers and processors, with wall-wart spacing accommodating bulky power supplies without blocking adjacent outlets

·         Installations (Bars, Clubs & Venues)

EVS protection defends against unpredictable AC power in older venues, preventing equipment failures during performances and reducing costly downtime

·         Commercial Workstations

Integrated USB-C and USB-A fast charging ports conveniently power tablets, wireless units, and accessories right from the rack without occupying precious outlets

·         AV & Recording Racks

Front-panel diagnostic LEDs provide at-a-glance breaker and protection status, eliminating guesswork when troubleshooting power issues in complex rack configurations

Technical Specifications

Maximum Output Current                              15 Amps

Line Cords                                                      3x14 AWG

Operating Voltage                                          120V~50/60Hz

Spike Protection Mode                                    Line to neutral

Energy Dissipation                                          126 Joules

Peak Impluse Current                                     6500 Amps

Maximum Continuous Operating Voltage      225 VAC RMS

Maximum Clamping Voltage                          455 Volts

Noise Attenuation                                           Greater than 20dB, 200kHz-10MHz

Under-voltage Shutoff                                    85VAC +/- 5%

Over-voltage Shutoff                                       140VAC +/- 5%

Weight                                                            4.63 lb/2.1 kg

Dimensions                                                      1.75”h x 19”w x 3.75”
