ULXD4D=-G57 | ULX-D WIDEBAND DUAL-CHANNEL DIGITAL WIRELESS RECEIVER, DANTE / 1RU *DUAL RECEIVER COMPONENT ONLY*

  • MAP: $3,475.00 / EA
  • List Price: $4,865.00 / EA
  • Log in to see if custom discounts apply
  • Case Quantity: 2
  • In Stock
ULX-D WIDEBAND DUAL-CHANNEL DIGITAL WIRELESS RECEIVER, DANTE / 1RU *DUAL RECEIVER COMPONENT ONLY*
ULX-D WIDEBAND DUAL-CHANNEL DIGITAL WIRELESS RECEIVER, DANTE / 1RU *DUAL RECEIVER COMPONENT ONLY*

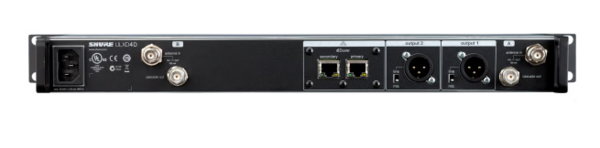

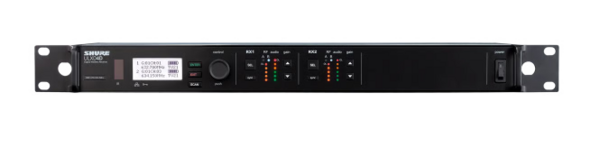

Click image to enlarge
ULX-D WIDEBAND DUAL-CHANNEL DIGITAL WIRELESS RECEIVER, DANTE / 1RU *DUAL RECEIVER COMPONENT ONLY*
ULX-D WIDEBAND DUAL-CHANNEL DIGITAL WIRELESS RECEIVER, DANTE / 1RU *DUAL RECEIVER COMPONENT ONLY*

ULXD4D=-G57
ULX-D WIDEBAND DUAL-CHANNEL DIGITAL WIRELESS RECEIVER, DANTE / 1RU *DUAL RECEIVER COMPONENT ONLY*

  • UM : EA
  • Estimated Weight: 12.0

Shure ULXD4D=-G57 is a dual-channel digital wireless receiver for the Shure ULX-D Digital Wireless System, providing two independent receiver channels in a compact 1RU chassis. This G57 model is intended to be combined with compatible ULX-D transmitters and accessories to build or expand a professional wireless microphone system.

The ULXD4D supports Dante digital networked audio, Ethernet networking, Wireless Workbench system coordination, AES 256-bit encryption, RF cascading, High Density operation, and independent control and audio outputs for each receiver channel. Its wide-tuning architecture and system-level networking make it well suited for installations requiring coordinated multi-channel wireless across venues, campuses, meeting facilities, houses of worship, performance spaces, and other professional AV environments.

This is a receiver component, not a complete wireless microphone system. Compatible ULX-D transmitters, microphones or capsules, batteries, charging solutions, antennas, and RF distribution components are selected separately based on the application.

  • Two receivers in a rugged 1RU metal chassis with internal power supply
  • Expanded tuning range (up to 166 MHz, region dependent))
  • Individual gain controls, LED meters, and XLR outputs for each channel
  • Digital predictive switching diversity
  • High Density mode optimizes ULX-D systems to simultaneously operate significantly more channels in applications up to 30 meters
  • RF cascade ports allow distribution of RF signal to another unit
  • Optimized scanning automatically finds, prioritizes, and deploys the cleanest frequencies to transmitters over IR sync
  • Bodypack frequency diversity ensures uninterrupted audio for mission-critical applications
  • AES 256-bit encryption-enabled for secure transmission
  • Audio summing routes both audio channels to each XLR receiver output
  • Dante™ digital networked audio over Ethernet
  • Up to 60 dB independently adjustable gain for each channel
  • Ethernet networking for streamlined frequency coordination and deployment across multiple receivers
  • Wireless Workbench® software integration for advanced coordination, monitoring, and control
  • AMX/Crestron® control
  • AXT600 Axient® Spectrum Manager compatible
  • Yamaha® device ID allows simplified channel patching on CL consoles
  • Intuitive front panel LCD menu and controls with lockout feature
  • Audio and RF LED meters with peak indicator
  • XLR connectors with switchable mic/line output level
  • Remoteable ½ wave antennas

    • With RF cascade and two Ethernet ports, units easily can share RF signal and be networked together for simplified frequency coordination and deployment. For networked audio applications, DANTE™ digital networking allows multiple channels of audio to be transmitted and received over a single Ethernet cable. When more compatible frequencies over shorter distances, High-Density mode can be enabled to dramatically increase the number of available open frequencies.

    With the suite of features and benefits ULX-D® Digital Wireless Systems offer, the ULXD4D receiver continues to brings a new level of performance to professional sound reinforcement.
    Note: When purchasing separate wireless components, please match their frequency bands to ensure proper system operation.
