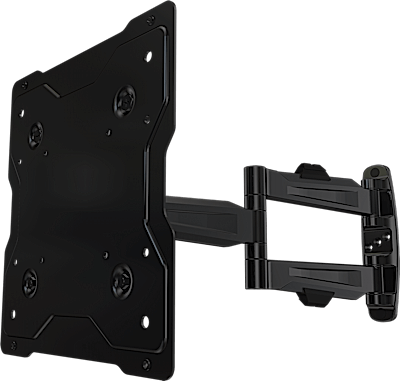

A40 | ARTICULATING MOUNT FOR 13" TO 49" FLAT PANEL SCREENS, BLACK

  • MAP: $182.39 / EA
  • List Price: $227.99 / EA
  • Log in to see if custom discounts apply
  • Case Quantity: 6
  • Sign In or Submit RFQ for accurate lead times
ARTICULATING MOUNT FOR 13" TO 49" FLAT PANEL SCREENS, BLACK
Click image to enlarge

A40
ARTICULATING MOUNT FOR 13" TO 49" FLAT PANEL SCREENS, BLACK

  • UM : EA
  • Estimated Weight: 10.6

Multiple joint arm holds screen 2.5" from wall when retracted and 21" when fully extended. Smooth tilt adjustments of +15° (forward) and -5° (back) with a locking knob and 3° side-to-side roll facilitates a variety of viewing angles and perfect screen positioning. Three attachment points for wood studs and four attachment points for concrete walls provide additional security. Integrated cable management for clean look.

Features:

  • OSHPD approved for seismic safety
  • VESA compatible 100x100mm, 200x100mm, 200x200mm
  • Optional AD400 extends compatibility up to 400x400mm (Not included)
  • Multiple attachment points for different mounting surfaces offers additional safety
  • Smooth variable tilt from 15° forward to 5° back
  • Integrated cable management for clean look
TV size range 13” – 49”
Weight capacity 80lb (36kg)
Max mounting pattern 200x200mm
VESA mounting patterns 100x100mm, 200x100mm, 200x200mm
Depth from wall 2.5” (63.5mm)
Max extension 21” (533mm)
Tilt +15°/-5°
Pivot 180°
Roll (side to side) 3°
Mounting surface wood stud, concrete or cinder block
Stud spacing single stud
Construction aluminum/high-grade cold rolled steel
Product finish scratch resistant epoxy powder coat
Product weight 9lb (4.1kg)
Package specifications 14”x12”x5”
Color black
Warranty 10-years
