AH-SQ-5-PLUS | SQ5+ RACKULTRA FX ENABLED 48-CHANNEL DIGITAL CONSOLE MIXER WITH DEEP PROCESSING

  • MAP: $4,999.00 / EA
  • List Price: $5,799.00 / EA
  • Log in to see if custom discounts apply
  • Case Quantity: 0
  • Sign In or Submit RFQ for accurate lead times

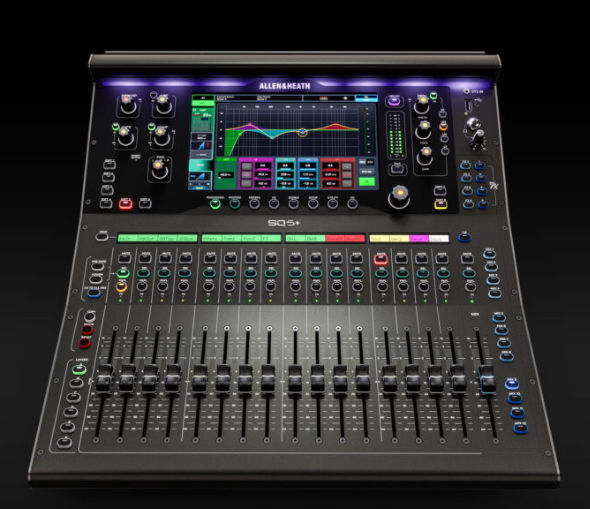

SQ5+ RACKULTRA FX ENABLED 48-CHANNEL DIGITAL CONSOLE MIXER WITH DEEP PROCESSING
Click image to enlarge

AH-SQ-5-PLUS
SQ5+ RACKULTRA FX ENABLED 48-CHANNEL DIGITAL CONSOLE MIXER WITH DEEP PROCESSING

  • UM : EA

Compact and rack-mountable, the SQ5+ puts the full feature set into the smallest frame in the range. 17 motorised faders, 8 assignable SoftKeys and 4 built-in RackUltra FX engines give you flagship-tier processing and comprehensive hands-on control. Add the 19” rack kit and it’s as at home in a fixed installation as it is on the road.



SQ5+ Features:

Audio and Processing:

  • 96kHz XCVI Core
  • 48x Inputs to Mix
  • 12x Stereo Aux/Group Mixes + LR
  • 6x Mono/Linkable Matrix
  • Full Channel and Mix processing (HPF, PEQ/GEQ, Comp, Gate)
  • DEEP Processing ready
  • 8x Rack Extra FX Engines with dedicated send and return channels
  • 4x RackUltra FX Engines with dedicated send and return channels

Digital I/O:

  • 128×128 Intelligent SLink Port for Everything I/O expansion and connection to other A&H consoles
  • 1x I/O Port for option cards (SLink, Dante, Waves and MADI cards available)
  • 1x AES3 Stereo Digital Output Socket

USB Recording & Playback

  • USB A: 16 Channels @ 96kHz
  • USB A: 32 Channels @ 48kHz
  • USB B Interface: 32×32 @ 96kHz
  • USB B Interface: 32×32 @ 48kHz

Analogue I/O:

  • 16x XLR Mic/Line Input Sockets
  • 12x XLR Output Sockets
  • 3x Stereo Line Input Sockets (4x TRS ¼” sockets, 1x 3.5mm TRS socket)
  • 1x XLR Talkback Socket
  • 2x TRS Output Sockets
  • Stereo Headphone Output

Control:

  • 17x 100mm Motorised Faders
  • 8x SoftKeys
  • 6x Channel Strip Layers
  • 9” Touchscreen with dark GUI
  • Configurable single/dual Footswitch Connection
  • Remote control via free apps – Windows/MacOS/iOS/Android



19” Rack Mountable (optional kit available)
