AWC129-BK | 12" 2WAY ALL-WEATHER COMPACT CO-AXIAL LOUDSPEAKER. 90° X 90° BROADBAND CONTROL, COAX DRIVER WITH

  • MAP: $1,050.00 / EA
  • List Price: $1,050.00 / EA
  • Log in to see if custom discounts apply
  • Minimum Order Quantity: 1
  • Case Quantity: 1
  • Sign In or Submit RFQ for accurate lead times
12" 2WAY ALL-WEATHER COMPACT CO-AXIAL LOUDSPEAKER. 90° X 90° BROADBAND CONTROL, COAX DRIVER WITH
12" 2WAY ALL-WEATHER COMPACT CO-AXIAL LOUDSPEAKER. 90° X 90° BROADBAND CONTROL, COAX DRIVER WITH
Click image to enlarge
12" 2WAY ALL-WEATHER COMPACT CO-AXIAL LOUDSPEAKER. 90° X 90° BROADBAND CONTROL, COAX DRIVER WITH
12" 2WAY ALL-WEATHER COMPACT CO-AXIAL LOUDSPEAKER. 90° X 90° BROADBAND CONTROL, COAX DRIVER WITH

AWC129-BK
12" 2WAY ALL-WEATHER COMPACT CO-AXIAL LOUDSPEAKER. 90° X 90° BROADBAND CONTROL, COAX DRIVER WITH

  • UM : EA
  • Estimated Weight: 47.0

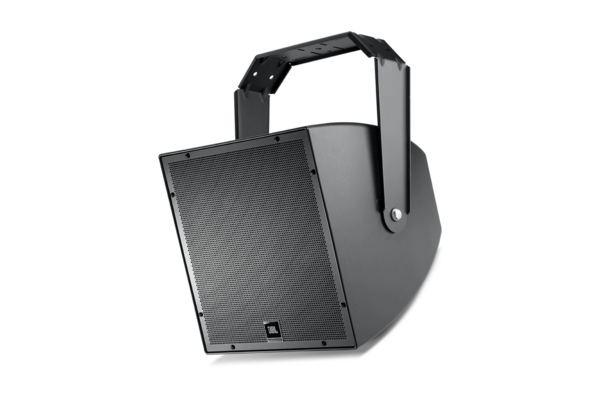

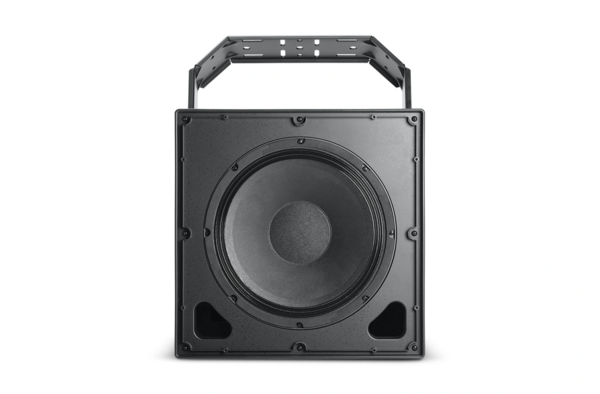

The AWC129-BK is a compact, weather-resistant 2-way coaxial loudspeaker featuring a 12-inch low-frequency driver. It is designed for full-range audio reproduction in both indoor and outdoor environments.

Features:

  • Weather-resistant IP56 rating
  • 90° x 90° broadband pattern control
  • 300 mm (12 in) woofer with Kevlar-reinforced cone
  • 75 mm (3 in) voice coil
  • 25 mm (1 in) exit compression driver with patented design and high temperature polymer diaphragm
  • Clear speech clarity with extended frequency for music
  • High-slope crossover network for constant coverage and natural midrange
  • 400W power handling with high sensitivity for high SPL
  • High-power passive crossover network
  • Overload protection
  • 55 Hz – 20 kHz frequency response
  • 200W 70V/100V multi-tap built-in transformer
  • Direct 8Ω low impedance
Frequency Range (-10dB) 55 Hz – 20 kHz
Frequency Response (±3 dB) 80 Hz – 20 kHz
Coverage Pattern 90° x 90°
Directivity Factor (Q) 10.1 (1 k – 16 kHz)
Directivity Index (DI) 9.5 dB (1k – 16 kHz)
System Power Rating 400 W (1600 W peak), 2 hrs; 250 W (1000 W peak), 100 hrs
Sensitivity (2.83V @ 1m) 96 dB (Ave. 80 Hz – 20 kHz)
Maximum SPL (1m) Direct 8Ω: 122 dB (peaks 128 dB); 200 W Tap: 119 dB
Crossover Network 1.5 kHz, 3rd order high-pass plus conjugate to HF, 2nd order low-pass to LF
Nominal Impedance 8ohms
