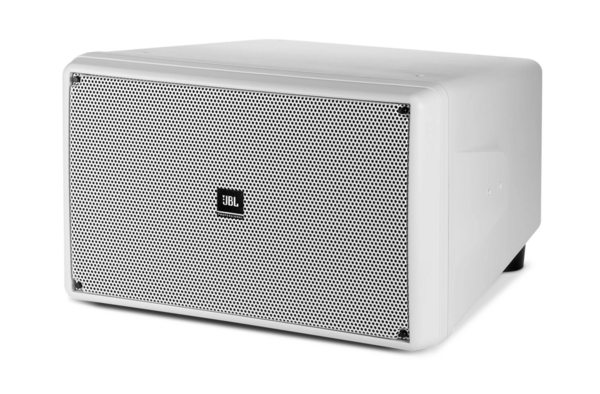

CONTROL SB2210 | COMPACT, LOW PROFILE, HIGH-POWER SUBWOOFER WITH 2 X 250MM (10 INCH) WOVEN-FIBERGLASS CONE DRIVERS

The Control SB2210 is a compact subwoofer equipped with two 10-inch drivers. It is designed to deliver low-frequency audio reinforcement for various sound system configurations. The enclosure is constructed to support outdoor installation environments.

• 2 x 250 mm (10 in.) Woven Fiberglass Cone LF Drivers
• 500 W Power handling
• Frequency Response Down to 38 Hz
• 13 x M6 Insert Points for Optional U-Bracket
• Compact Low Profile Design

Frequency Range	38 Hz - 500 Hz
Frequency Response	48 Hz - 95 Hz
Power Rating	500W continuous, 2000W peak pink noise (2 hrs), 1000W continuous program (2 hrs), 400W continuous pink noise (100 hrs)
Maximum Input Voltage	60 VRMS (2 hrs), 120 V peak
Sensitivity	95 dB, 1W @ 1m in half-space (50 – 90 Hz average)
Maximum SPL (1m)	122 dB in half-space
Impedance	8 ohm
Minimum Impedance	7.2 ohm at 160 Hz
Recommended Filter	45 Hz, 24 dB/oct high-pass filter
Drivers	Two 250 mm diameter LF drivers, long-excursion design, woven fiberglass cone, butyl rubber surround, linear suspension spider, high-temp anodized aluminum voice coil former, high-temp voice coil wire and adhesive, FEA optimized motor construction, aluminum conductive ring
Enclosure	High Impact PolyStyrene with 10% glass fill, 8 mm polyurethane co-mold, UV-resistant paint on white model
Baffle	Thermoset composite coated steel, zinc-plated, 3-layer foam backing
Outdoor Capability	IP-45 rating per IEC529 with MTC-PC2 terminal panel cover, exceeds MilSpec 810 for humidity, salt spray, temperature & UV, passes Mil-Std-202F for salt spray
Input Connectors	Screw-down terminal strip, zinc plated copper, nickel-plated screws/washers; accepts up to 9 mm outside, 4 mm inside open lug (#6, #8, #10) or bare wire (up to 12 AWG/2.5mm2); MTC-PC2 and MTC-PC3 covers for weather protection
Safety Agency	ROHS-compliant; optional MTC-SBT300 transformer is UL recognized per UL1876
Colors	Black
Included Accessories	1 MTC-PC2 input panel cover, 4 floor standing feet, 4 beveled washers
Mounting Hardware	Optional U-bracket, insert points on top & bottom
Coverage Angle	Omnidirectional
