D-NVC2 | DANTE / AES67 1 OR 2-CHANNEL NETWORK VOLUME CONTROL WITH COLOR LCD, POE / WHITE
D-NVC2
DANTE / AES67 1 OR 2-CHANNEL NETWORK VOLUME CONTROL WITH COLOR LCD, POE / WHITE
D-NVC2
DANTE / AES67 1 OR 2-CHANNEL NETWORK VOLUME CONTROL WITH COLOR LCD, POE / WHITE
- UM : EA
- Estimated Weight: 1.0

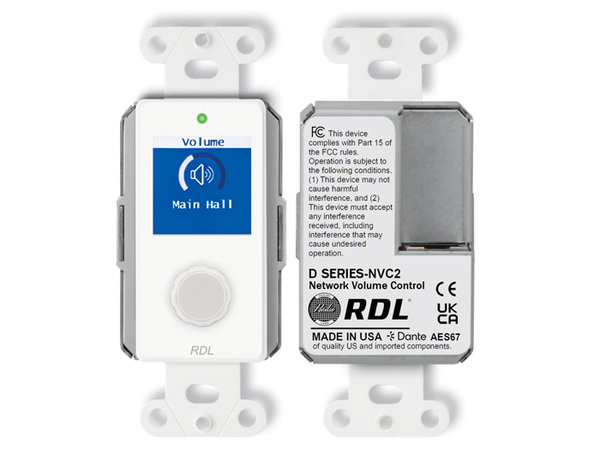

RDL D-NVC2 is a wall-mounted network volume controller for adjusting and muting one or two Dante or AES67 audio channels. Network audio is routed directly through the controller, allowing digital level adjustment of two mono channels or one stereo source before the signal reaches a Dante-enabled amplifier, processor, or other network audio destination.
The rotary encoder provides 1 dB level adjustment, push-to-mute operation, and menu access through a full-color LCD display. Output channels may be controlled independently or together, and stereo audio can be summed to mono through RDL CONSOLE software. Installers can also configure channel names, display themes, acceleration behavior, menu defaults, inactivity lockouts, and passcodes.
PoE power and standard US electrical-box mounting simplify installation in classrooms, conference rooms, hospitality spaces, houses of worship, multipurpose rooms, and other commercial AV systems requiring accessible local control of Dante network audio.
· Dante network audio volume control
· AES67-compatible commercial audio systems
· Classroom and training-room audio
· Conference rooms and meeting spaces
· Hospitality and hotel audio zones
· Houses of worship
· Multipurpose rooms
· Distributed audio systems
· Local zone volume and mute control
· Stereo or dual-mono network audio
Also Consider
· Dante-enabled power amplifiers
· AES67-compatible audio systems
· RDL Dante network interfaces
· RDL D-NMC1R remote controllers
· RDL D-NLC1R remote controllers
· RDL CONSOLE software
· PoE network switches
· Commercial audio DSP systems
· Networked ceiling-speaker systems
· Classroom AV systems
· Conference-room audio systems
TYPICAL PERFORMANCE Network Connector: RJ45 with LED indicators Transmission Rate: 100 Mbps Sample Rates Supported: 44.1 kHz, 48 kHz (default), 88.2 kHz, 96 kHz Indicators (3): Ethernet Link and Speed (2, rear panel); Power (front panel) Screen: Color LCD 240 x 240 pixels Rotary Control: Knob push short: Mute/Unmute or Enter; Ambient Operating Environment: 0° C to 40° C; 30° C maximum recommended Power Requirement: PoE Class 0, IEEE 802.3af Mounting: Mounts in standard US electrical box; Dimensions: 1.8” (4.57 cm) W; US Tariff code: 8543.70.9860 EU Tariff code: 85437090 Package Type: Cardboard Box Package Dimensions: 3.625 x 4.625 x 2.125 in. Shipping Weight: 0.51 lbs. WEEE weight: 0.37 lbs.
Knob push long: Menu selection;
Knob rotation: Level Up/Down
cover plate available separately
4.11” (10.44 cm) H;
1.61” (4.09 cm) D
