HA-1030EN | LONG RANGE ARRAY SPEAKER DESIGNED FOR CLEAR LONG-RANGE VOICE PROJECTION, IP66, EN 54-24 COMPLIANT
HA-1030EN
LONG RANGE ARRAY SPEAKER DESIGNED FOR CLEAR LONG-RANGE VOICE PROJECTION, IP66, EN 54-24 COMPLIANT
HA-1030EN
LONG RANGE ARRAY SPEAKER DESIGNED FOR CLEAR LONG-RANGE VOICE PROJECTION, IP66, EN 54-24 COMPLIANT
- UM : EA
- Estimated Weight: 20.0
The TOA HA-1030 is a long-range horn array loudspeaker engineered for outdoor and large-area sound reinforcement applications where speech intelligibility and controlled coverage are critical. Designed as part of TOA’s HA Series, the HA-1030 combines multiple horn-loaded drivers in a vertical array to deliver focused, high-output performance over extended distances. Its directional characteristics help minimize sound spill while maintaining clear audio projection, making it well suited for paging, emergency notification, and public address systems in expansive environments.
Built for permanent outdoor installation, the HA-1030 features a rugged, weather-resistant enclosure with an IP-rated design to withstand rain, dust, and harsh environmental conditions. The speaker supports high-impedance (70V/100V) distributed systems, allowing efficient coverage across wide areas with minimal power loss. With TOA’s reputation for reliability in mission-critical audio systems, the HA-1030 is an excellent choice for transportation facilities, industrial sites, stadium perimeters, and other locations requiring durable, long-throw outdoor audio performance.
- Optimized for Long Range Use

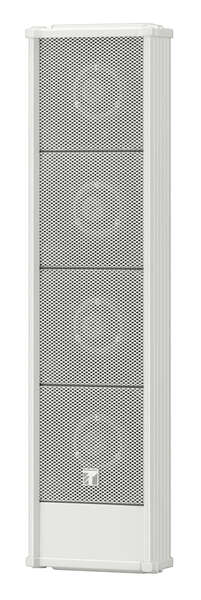

Four precision horn drivers deliver crisp, controlled audio coverage even in expansive zones—no additional tuning required. - Built for the Elements
Durable aluminum construction with salt-resistant paint and an IP66 rating makes this speaker perfect for outdoor setups like airports, parks, factories, emergency zones, and more. - Flexible Power Options
Supports both 100 V and 70 V lines with impedance settings of 330 O or 670 O (100 V) and 170 O or 330 O (70 V), meeting diverse installation needs. - Clear and Robust Sound
With high sensitivity (110 dB @ 1 W/1 m) and a wide frequency response range (390 Hz to 11 kHz), this unit ensures every announcement is loud, clear, and reliable. - Sleek Industrial Design
Compact (167 × 665 × 140.5 mm) and lightweight (8 kg), finished in clean white (RAL 9016), it combines functionality with aesthetic versatility.
Best Used For:
· Outdoor paging and emergency notification systems
· Transportation hubs and rail platforms
· Stadiums, arenas, and sports complexes
· Industrial facilities and warehouses
· Campuses, parking structures, and large outdoor corridors
· Voice evacuation and mass notification systems
Features:
- Horn array for clear long-range voice projection
- IP66-rated for harsh outdoor use
- Weatherproof durability with double drip-proof design and saltresistant paint finish
- Wide horizontal coverage for broad-area public address applications
- Built-in high-pass filter for speaker protection
- EN 54-24 compliant for evacuation systems
- Optional mounting bracket for flexible installation
