LTS-810-72-BB-VC |

  • MAP: $148.19 / EA
  • List Price: $168.40 / EA
  • Log in to see if custom discounts apply
  • Case Quantity: 0
  • Sign In or Submit RFQ for accurate lead times
Click image to enlarge

LTS-810-72-BB-VC

  • UM : EA

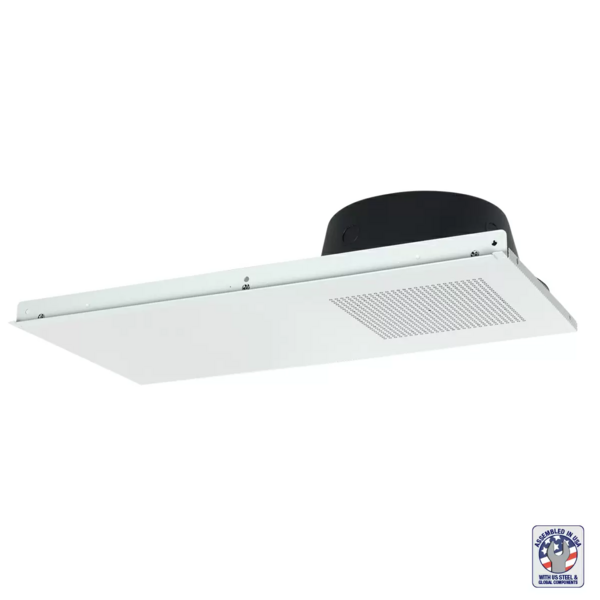

Quick-install speaker system for suspended tile ceilings features an 8-inch dual cone driver with dual voltage (25V/70V) transformer, 1x2 frame with 7-inch square grille and an adjustable volume control on enclosure. The patented assembly features an integral T-bar support that quickly replaces half of a non-tegular 2x2 ceiling tile or one-fourth of a non-tegular 2x4’ceiling tile. For commercial paging and background music.

  • Driver (810):  8 in. 15W dual cone driver with 10 oz. magnet, frequency response of 54Hz-11.6kHz (±6dB) and 50Hz-20kHz (±6.6dB), and average sensitivity of 97.9dB measured 1W/1M. Conical dispersion 95 degrees.
  • Transformer:  Dual voltage 25V/70V transformer with taps at .25, .5, 1, 2, 5W.
  • Grille (1×2 Frame):  Square 7-inch grille pattern in 1×2 frame with white powder coat finish.
  • Enclosure (.147 cu.ft.):  Steel backbox with speaker leads that exit through a metal clamp for fast connection. Black.
  • Mounting Aid:  Patented integral T-bar supports neighboring non-tegular cut ceiling tile. Restraint tab and hole for two-cable code compliance (cables not included).
  • Volume Control
