OVATIONH55WWBLKH2 | OVATION H-55 WW WHITE WARM HOUSE LIGHT BLACK
OVATIONH55WWBLKH2

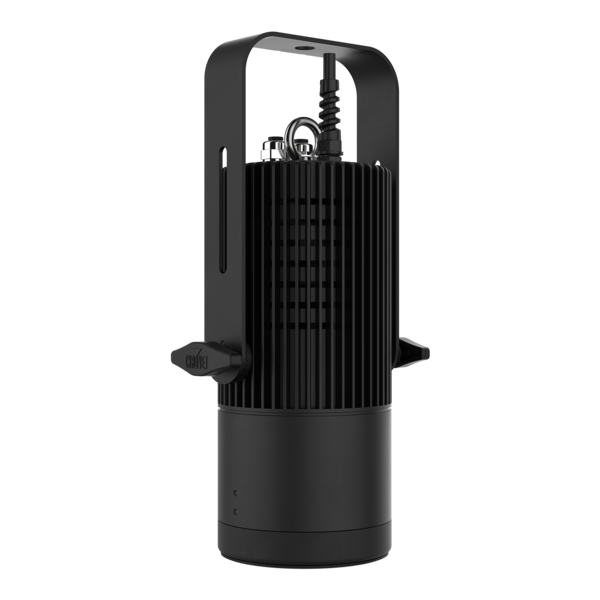

OVATION H-55 WW WHITE WARM HOUSE LIGHT BLACK
OVATIONH55WWBLKH2
OVATION H-55 WW WHITE WARM HOUSE LIGHT BLACK
- UM : EA
- Estimated Weight: 18.0

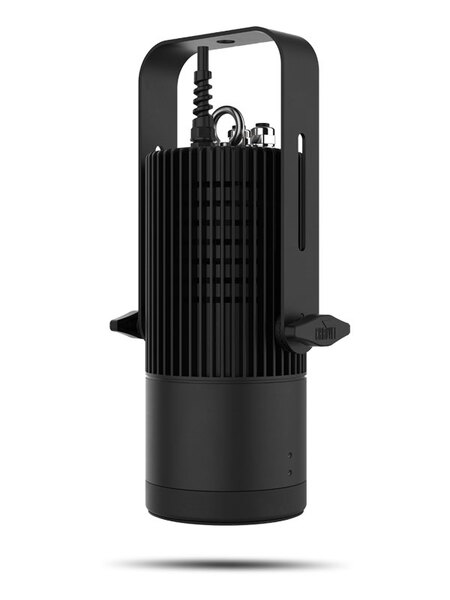

Ovation H-55WW is a small and silent, convection cooled LED houselight with a punchy warm white output and a high CRI, ideal for theatres, worship venues and recital halls or any other application with a smaller trim height. The unit also features 16-bit dimming, RDM and W-DMX control as well as adjustable PWM to prevent flickering on televised performances. Interchangeable lenses for height adjustment are another indispensable feature in theatrical and house of worship applications. For even more versatility, the yoke can be completely removed, and the fixture suspended, pendant style, from a loop on the back plate.
Features:
- Features a 129.5 W warm white LED source for high-quality light with an exceptional 93 CRI.
- Adapt the beam angle for various mounting heights with included interchangeable 40°, 65°, and 80° lens plates.
- Its fanless, convection-cooled design ensures completely silent operation for noise-sensitive environments.
- Supports DMX, W-DMX, and RDM protocols for versatile control and remote device management.
- Offers flexible installation with a removable yoke, integrated loop-eye, and included recess or sconce kits.
- Features both 5-pin XLR and terminal block connections for easy DMX integration into any system.
| Light Source | 1 LEDs (WW) 129.5 W, (1.45 A), 3157 K, 50,000 hours life expectancy |
|---|---|
| Color Temperature (at full) | 3157 K |
| CRI | 93 |
| Lumens (w/80° filter) | 3314 |
| Lumens (w/65° lens) | 3797 |
| Lumens (w/40° lens) | 4007 |
| Lumens (w/25° lens) | 4079 |
| Selectable PWM | 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 25,000 Hz |
| Power Connection | Bare-wired |
| Power Input | Hard-wired |
| Data Connectors | 5-pin XLR, Phoenix connector |
| Cable Length (power) | 15 ft (4.5 m) |
| Certifications | CE, MET, FCC |
| IP Rating | IP20, dry location |
| Temperature (Ambient) | -4 °F to 113 °F (-20 °C to 45 °C) |
