PD525S | DUAL 15" SUBWOOFER SYSTEM, 2275H DRIVER, 75MM (3 IN) VOICE COIL, 4-OHM NOMINAL IMPEDANCE.

  • MAP: $3,250.00 / EA
  • List Price: $3,250.00 / EA
  • Log in to see if custom discounts apply
  • Case Quantity: 1
  • Sign In or Submit RFQ for accurate lead times
DUAL 15" SUBWOOFER SYSTEM, 2275H DRIVER, 75MM (3 IN) VOICE COIL, 4-OHM NOMINAL IMPEDANCE.
DUAL 15" SUBWOOFER SYSTEM, 2275H DRIVER, 75MM (3 IN) VOICE COIL, 4-OHM NOMINAL IMPEDANCE.
Click image to enlarge
DUAL 15" SUBWOOFER SYSTEM, 2275H DRIVER, 75MM (3 IN) VOICE COIL, 4-OHM NOMINAL IMPEDANCE.
DUAL 15" SUBWOOFER SYSTEM, 2275H DRIVER, 75MM (3 IN) VOICE COIL, 4-OHM NOMINAL IMPEDANCE.

PD525S
DUAL 15" SUBWOOFER SYSTEM, 2275H DRIVER, 75MM (3 IN) VOICE COIL, 4-OHM NOMINAL IMPEDANCE.

  • UM : EA

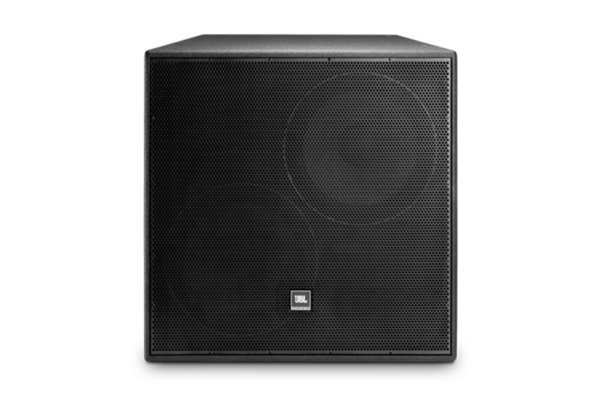

The PD525S is a dual 15-inch subwoofer featuring two 380 mm (15 in) dual coil, dual gap Differential Drive low-frequency drivers. The drivers are arranged in a front-loaded, vented enclosure designed to enhance low-frequency performance. The trapezoidal cabinet includes M10 threaded suspension points for mounting.

Features:

  • Two 380 mm low frequency drivers
  • Low frequency extension to 40 Hz
  • Enclosure compatible with PD500 Series
Frequency Range 28 Hz to 3.8 kHz
Frequency Response 40 Hz to 1.1 kHz
Transducer Power Ratings (AES) 2000 W (8000 W peak) for 2 hours
System Power Rating 1000 W for 100 hours
Sensitivity 102 dB (average 40 Hz to 1 kHz)
Maximum SPL (1m) 135 dB continuous, 141 dB peak
Input Modes Drivers Parallel / Drivers Discrete
Nominal Impedance 4ohms (parallel), 2 x 8ohms (discrete)
LF Driver 2 x JBL 2275H 15 in Dual Coil Dual Gap Differential Drive drivers with 3 in voice coils
Enclosure Trapezoidal, 18 mm exterior grade 11-ply Finnish birch plywood
