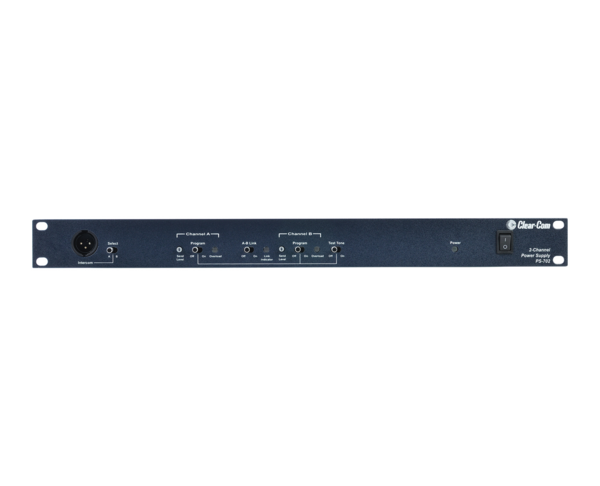

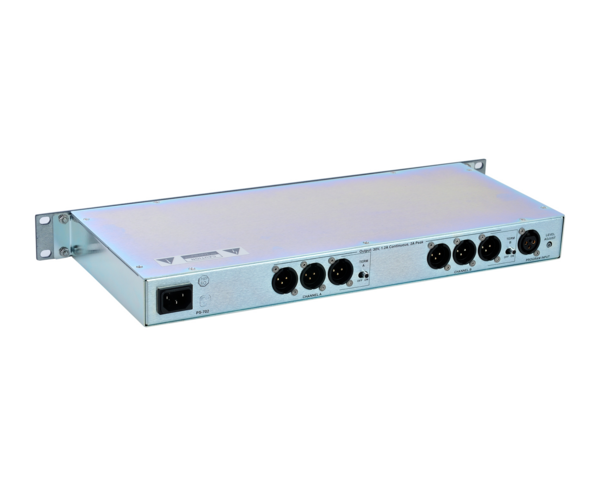

PS-702 | 2 CH RACK MOUNT POWER SUPPLY:  ENCORE TWO-CH ONE-AMP, (TWO-AMP PEAK),1RU RACK MOUNT,UNIVERSAL POWER

  • MAP: $1,320.00 / EA
  • List Price: $1,320.00 / EA
  • Log in to see if custom discounts apply
  • Case Quantity: 0
  • Sign In or Submit RFQ for accurate lead times
2 CH RACK MOUNT POWER SUPPLY:  ENCORE TWO-CH ONE-AMP, (TWO-AMP PEAK),1RU RACK MOUNT,UNIVERSAL POWER
2 CH RACK MOUNT POWER SUPPLY:  ENCORE TWO-CH ONE-AMP, (TWO-AMP PEAK),1RU RACK MOUNT,UNIVERSAL POWER
Click image to enlarge
2 CH RACK MOUNT POWER SUPPLY:  ENCORE TWO-CH ONE-AMP, (TWO-AMP PEAK),1RU RACK MOUNT,UNIVERSAL POWER
2 CH RACK MOUNT POWER SUPPLY:  ENCORE TWO-CH ONE-AMP, (TWO-AMP PEAK),1RU RACK MOUNT,UNIVERSAL POWER

PS-702
2 CH RACK MOUNT POWER SUPPLY:  ENCORE TWO-CH ONE-AMP, (TWO-AMP PEAK),1RU RACK MOUNT,UNIVERSAL POWER

  • UM : EA

The PS-702 power supply delivers up to 2 amps at 30 volts DC across two channels within a 1RU chassis. Each channel can provide up to 1.2 amps, with the total current capacity allocable between the two channels.

This configuration supports powering up to 40 beltpacks, 10 speaker stations, or 12 headset stations under typical operational conditions.

Features:

  • 2 amps at 30 volts output
  • Supports up to 40 beltpacks
  • Supports 10 speaker stations
  • Supports 12 headset stations
  • Full current capacity divided between two channels
  • Intelligent Fault/Overload Sensing (IFOS)
  • A+B Link switch for single-channel operation
  • Built-in test tone generator
  • UL listed
  • CE certified
  • Line regulated
  • Load regulated
  • Short-circuit protected
Maximum Level before Clipping >= 20dBu
Input Impedance >= 5K
Input Voltage Range 100 - 240V AC
Input Frequency Range 50 - 60Hz
Input Power <= 60V AC
Output Voltage 30V DC ± 0.5V
Output Current per Channel (Continuous) 1.2A
Output Current per Channel (Peak) 2A
Short Circuit Recovery Time (1st short) <= 0.5 sec
Short Circuit Recovery Time (>= 20 shorts in 20 sec) <= 20 sec
