PS120-G2 | PLATINUM SERIES 120W, 8-OHM/70V, 1-CHANNEL, CLASS-D AMPLIFIER GEN 2
PS120-G2
PLATINUM SERIES 120W, 8-OHM/70V, 1-CHANNEL, CLASS-D AMPLIFIER GEN 2
PS120-G2
PLATINUM SERIES 120W, 8-OHM/70V, 1-CHANNEL, CLASS-D AMPLIFIER GEN 2
- UM : EA
- Estimated Weight: 14.0

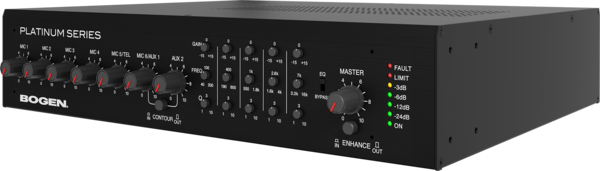

The Bogen PS120-G2 is a 120-watt amplifier from the Gen-2 Platinum Series, designed to deliver exceptional audio performance, intuitive control, and reliable operation for commercial sound systems. It features Class D amplification with a high-efficiency power supply and includes advanced DSP processing with a built-in GUI for configuration via LAN. The PS120-G2 supports multiple inputs—mic, line, and auxiliary—with selectable phantom power, bass/treble control, and priority muting. With a compact 1RU design, front-panel volume control, and status indicators, it’s ideal for paging, background music, and general audio distribution in schools, retail, offices, and houses of worship. Versatile output options include 4-ohm, 8-ohm, 25V, 70V, and 100V taps, making it a flexible solution for distributed audio installations.

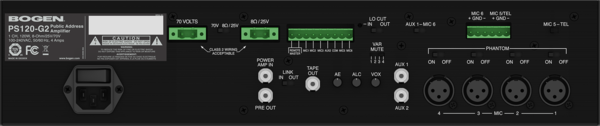

- New 8-ohm/25V-70V switch and separate output connector blocks on rear panel allows the user to easily select the proper amp output for the type of speakers being installed; no longer will you need an external impedance matching transformer for 70V speakers.
- Increase design flexibility and enable a wide variety of installation configurations with a single amplifier, allowing either 8-ohm/25V, 70V operation.
- 120 and 240-watt models
- 4 Dedicated microphone inputs (XLR connectors MIC 1-4) with selectable phantom power
- 1 Selectable MIC 5/TEL input
- 1 Selectable MIC 6/AUX 1 input
- 1 Dedicated AUX 2 input
- 8-ohm/25V, 70V speaker outputs
- 5-band full parametric equalizer with independent Gain, Frequency, and Q controls
- True loudness contour function on AUX 1 and AUX 2
- Audio Enhancement feature for improved voice intelligibility with adjustable level
- Lo-cut filter for all MIC channels
- Remote master volume control capability (using optional GSRVC)
