SBC-CA-40 | SWIVEL ARM ROTATING SUSPENSION ARM - 40" USED WITH BEAM CLAMPS
SBC-CA-40
SWIVEL ARM ROTATING SUSPENSION ARM - 40" USED WITH BEAM CLAMPS
SBC-CA-40
SWIVEL ARM ROTATING SUSPENSION ARM - 40" USED WITH BEAM CLAMPS
- UM : EA

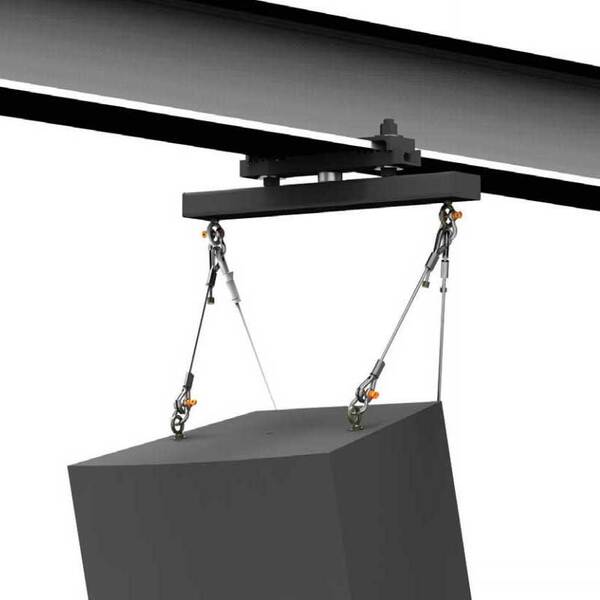

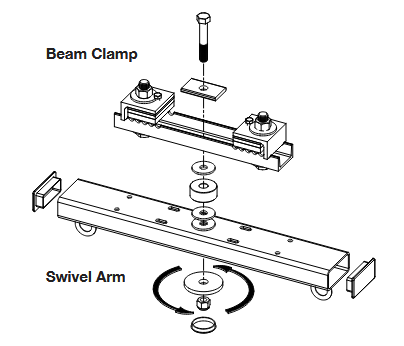

Use the Adaptive SBC-CA-40 Swivel Arm to mount or rig loudspeakers from this rotating arm and get a full 360 degrees of horizontal aiming from a selected Beam Clamp. This load-rated Swivel Arm pairs with a variety of steel and wood beam clamps. It’s mounting pattern mates with our AJ Adjustable Series U-Brackets. Eye Bolts are included for rigging. For rigging options, choose the size of Swivel Arm based on the selected speaker size and orientation. Vertical orientations require Swivel Arms 2-4” longer than the width of the speaker. Horizontal orientations require arms 2-4” longer than the height of the speaker.
Materials: Structual Steel Alloy
Finish: Powder Coat
Color: Black
Pan Rotation: 360º
WLL: 400 lb / 182 Kg
Design Factor: 7:1 Ratio
Contents: 1pc: Swivel Arm
2pc: Eyebolts
1bag: Hardware Kit
